| Place of Origin: | Shandong, China |
|---|---|
| Brand Name: | Deerma |
| Price: | $33,000.00/sets >=1 sets |
| Packaging Details: | PVC Electric Cable Profile / PVC Trunking Extrusion Machine <br>1.Mold package:Wooden package. <br>2.Outside package:Stretch film <br>3. Loading Container : 1X40GP for one machine |
| Supply Ability: | 5 Set/Sets per Month 38CrMoALA |
| Condition: | New | Plastic Processed: | PE, PP, PVC, PC |
|---|---|---|---|
| Application: | Profile | Screw Design: | Double-screw |
| Twin Screw Type: | Counter-rotating Conical Twin-screw | Screw Material: | 38CrMoALA |
| Screw Diameter (mm): | 65 Mm | Screw L/D Ratio: | 30:1 |
| Screw Speed (rpm): | 22 Rpm | Showroom Location: | None |
| Voltage: | 380V Or CUSTOMIZED | Dimension(L*W*H): | L22000*W1600*H2600mm |
| Power (kW): | 37 | Weight: | 8 KG |
| Warranty: | 1 Year | Key Selling Points: | High Productivity |
| Applicable Industries: | Hotels, Home Use | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Pump |
| Machinery Test Report: | Provided | Name: | 38CrMoALA |
| Raw Material: | PVC Resin & Calcium Powder & Additive | PVC Cable Trunking: | 20x10 Mm 20x12 Mm 40x16 Mm 40x25 Mm.... |
| Production Line Speed: | 1-15 M/min | Output Capacity: | 180-250 Kg/ Hr |
| Drive Motor: | SIEMENS | Inveter: | ABB Made In Switzerland |
| Temperature Controller: | Omron Made In Japan | Output (kg/h): | 180 - 250 Kg/h |
| Port: | Qingdao |
PVC Electric Cable Profile / PVC Trunking Extrusion Machine
Main Composition

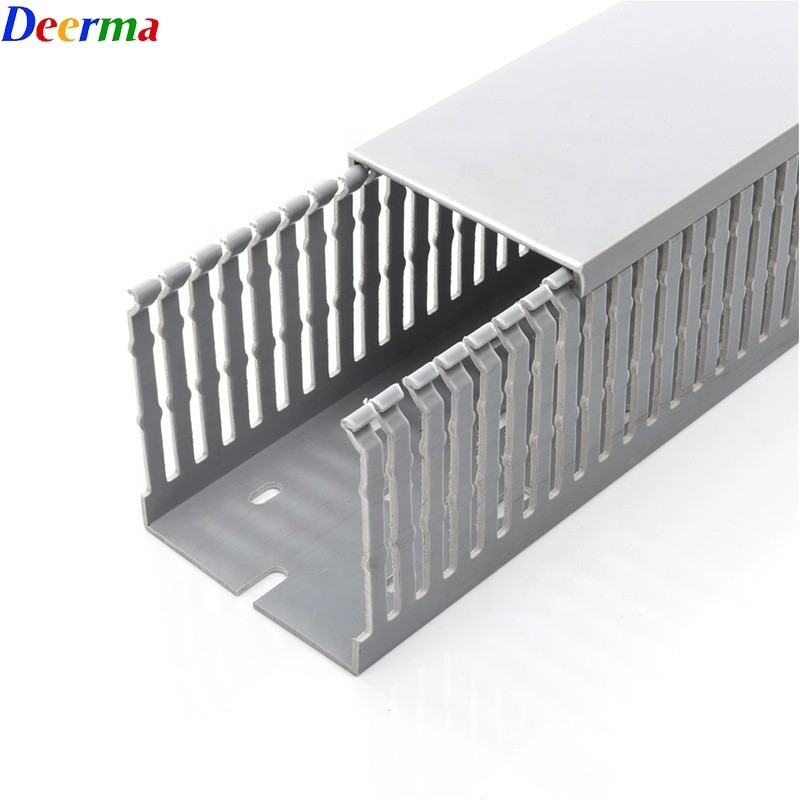

PVC Cable Trunking
| SIZE (W*H) mm | THICKNESS (mm) |
| 20x12 mm | 0.50/0.60/0.80 |
| 23x13 mm | 0.65/0.75 |
| 24x14 mm | 0.65/0.70 |
| 25x16 mm | 0.63/0.72/1.00 |
| 30x15 mm | 0.60/0.76 |
| 38x17 mm | 0.75/0.90 |
| 40x16 mm | 0.60/0.80/1.00 |
| ....... | ........ |
| 100x40mm | 1.35/1.5 |
| 100x50mm | 1.25/1.70 |

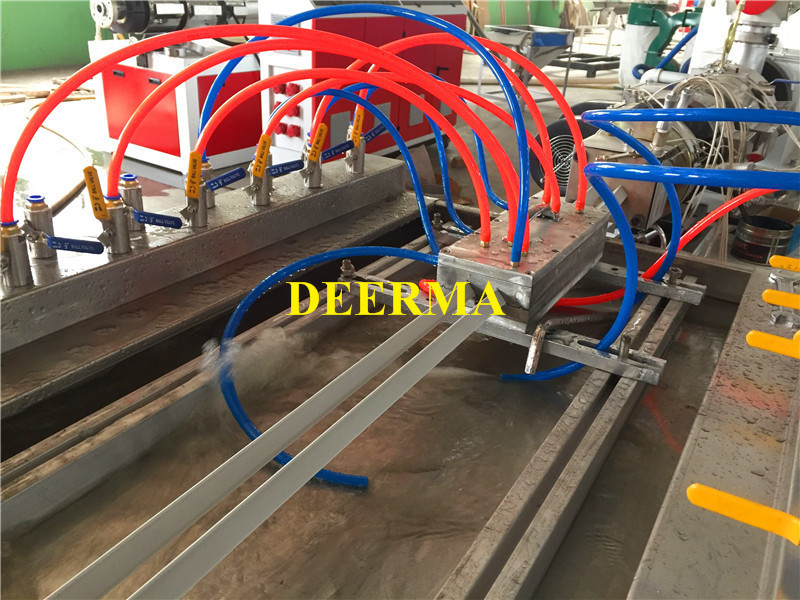

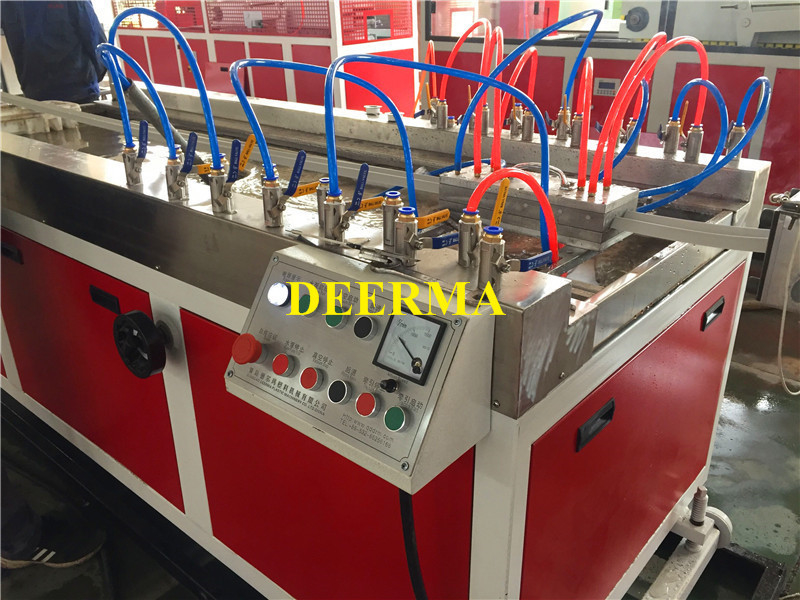

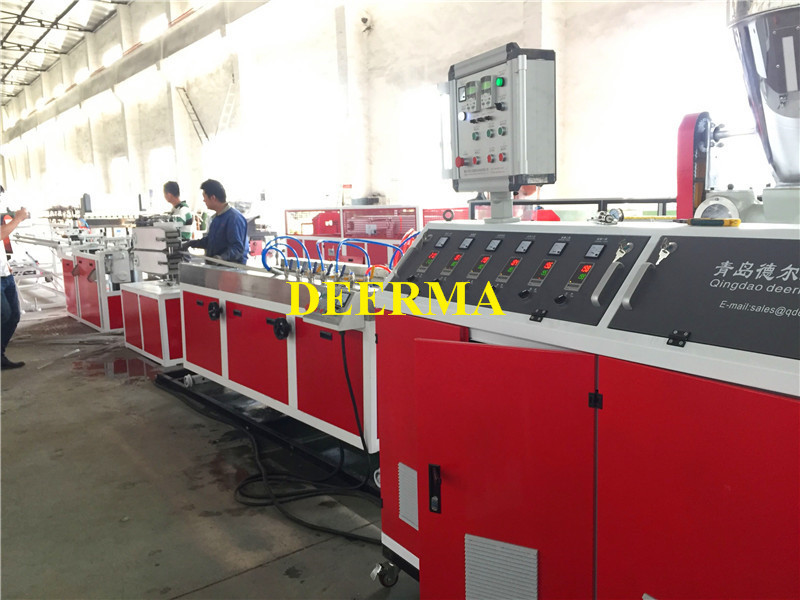

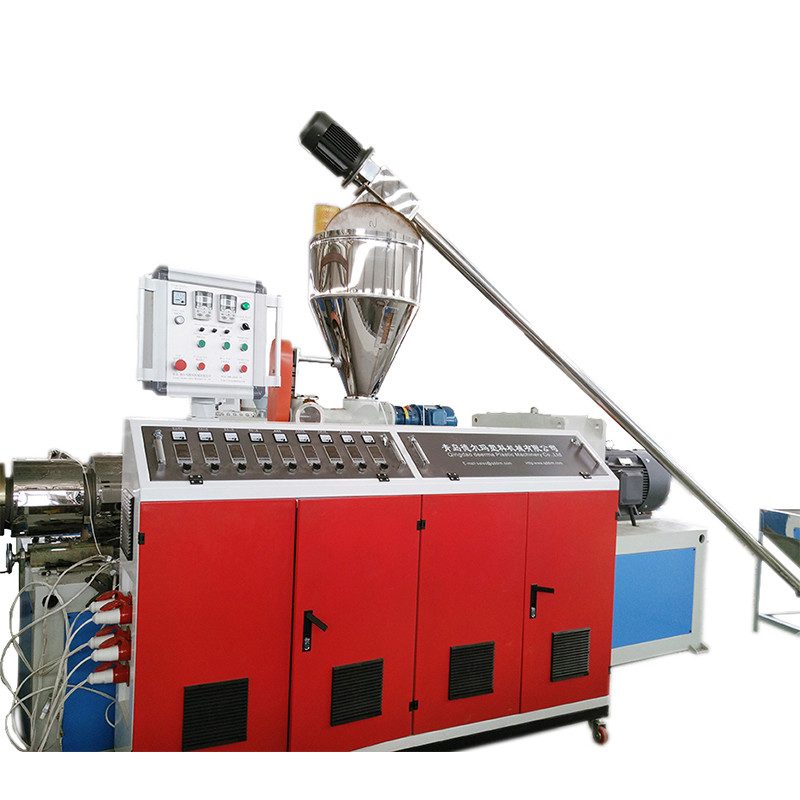

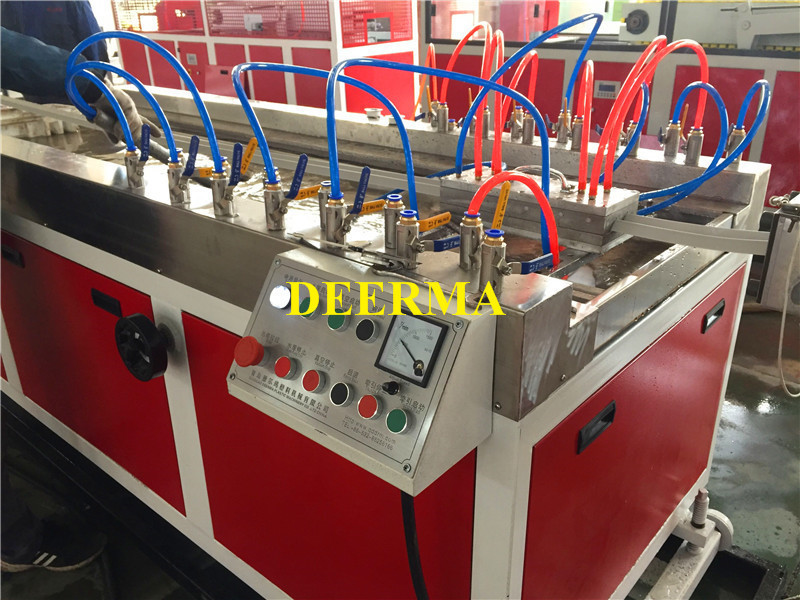

Machine's Photos
| Certification | Certified By | Certificate No. | Business Scope Expiry Dat | Expiry Date |
| ISO 9001:2008 | Beijing Hangxie Certification |
| Design and Production of | 17/Sep./2013 |
| CE | European | CN.CE.0680-10/10 | Plastic Extrusion Machinery & | 29/Oct./2010 |
| TUV | TÜV Rheinland | 7467484_P+T | Production & Trade Assessment | 15/Jan./2014 14/Jan./2015 |
| Main Product Lines Verification Report | TÜV Rheinland | 7467487_P+T | Main Product Lines Verification | 15/Jan./2014 14/Jan./2015 |
| SGS | SGS-CSTC Standards Technical Services Co.,Ltd Focus Technology Co., Ltd | QIP-ASR155278 | Extrusion Machine, Pipe Machine ,profile Machine, Roof Machine… | 15/Ma |
1.Our company will provide relevant information on various technology and business consulted by customers. If clients want to visit our company, we will offer all they need for convenience.
2.After signing contract, company designs groundsill installation chart for water, electricity and gas of equipment basing on real condition and customers’ requirements and provides detail order list and matching manufacturer for reference for customer.
3.After equipment arrival, our service personnel will arrive at posted locale for installation, debugging, training and technology transfer till customers can operate independently and manufactures eligible product. Service personnel have to arrive at customer’s locale in time when we provide service for client again.
Q: Your company is an industrial manufacture factory or a transactional company ?
A: Deerma Company is an industry manufacture of Extrusion Machines.
Q:All of your products are made by your self or compacted via purchasing the others?
A: we have independent technical team who focus on design & development & Manufacture extrusion machines. all the products are made by our technical team.
Q:Annual Production Capacity( Previous Year)
A: About 80 lines from 2014.1 to 2014.12 and total revenue is about USD 2500000
Q: Quality Control Management
Is there quality control on all production lines? Yes, all production lines have adequate quality
control
Do the QA/QC inspectors work independently from the production line? Yes
How many QA/QC inspectors in total? 4
