| Place of Origin: | Shandong, China |
|---|---|
| Brand Name: | Deerma |
| Minimum Order Quantity: | 2 sets |
| Price: | $35,000.00/sets >=2 sets |
| Packaging Details: | 1.Mold package:Wooden package. 2.Outside package:Stretch film <br>used pvc window manufacturing machine/pvc window profile machine/pvc window fabrication machinery |
| Supply Ability: | 30 Set/Sets per Month PVC UPVC Window Profile Machine / pvc window extrusion machine l |
| Condition: | New | Plastic Processed: | PE, PP, PVC, ABS, WPC, PC |
|---|---|---|---|
| Application: | Profile | Screw Design: | Double-screw |
| Twin Screw Type: | Counter-rotating Conical Twin-screw | Screw Material: | 38CrMoALA |
| Screw Diameter (mm): | 65 Mm | Screw L/D Ratio: | 55 |
| Screw Speed (rpm): | 55 Rpm | Showroom Location: | None |
| Voltage: | 380V/3P/50HZ Or As Local Voltage | Dimension(L*W*H): | L22000*W1600*H2600mm |
| Power (kW): | 37 | Weight: | 10 KG |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
| Applicable Industries: | Hotels, Restaurant, Home Use | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Screw |
| Machinery Test Report: | Provided | Production Line Speed: | 1-5m/min |
| Drive Motor: | Siemens Made In Germany | Inveter: | ABB Made In Switzerland |
| Temperature Controller: | Omron | Machine Control: | PLC |
| Operator: | 1-2 Persons Per Shift | After Warranty Service: | Video Technical Support |
| Local Service Location: | None | Processing Type: | Extrusion |
| Marketing Type: | Ordinary Product | Port: | Qingdao |

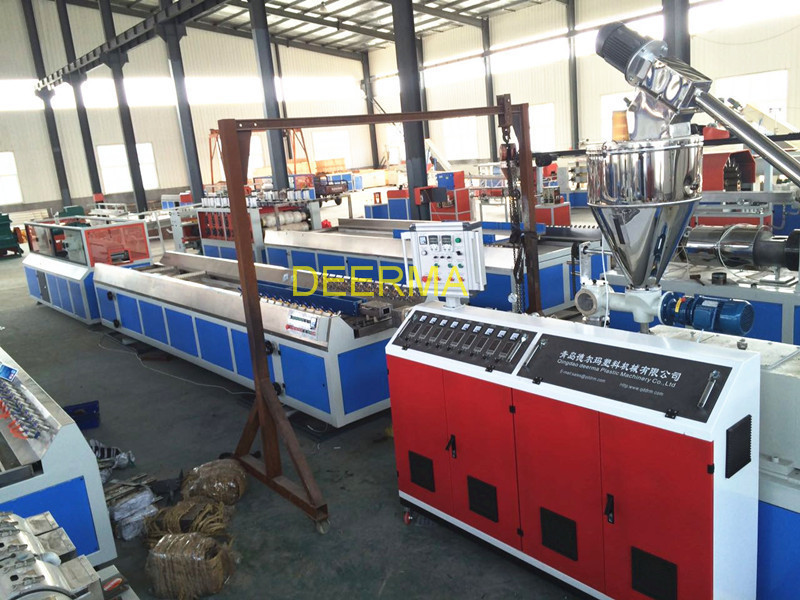

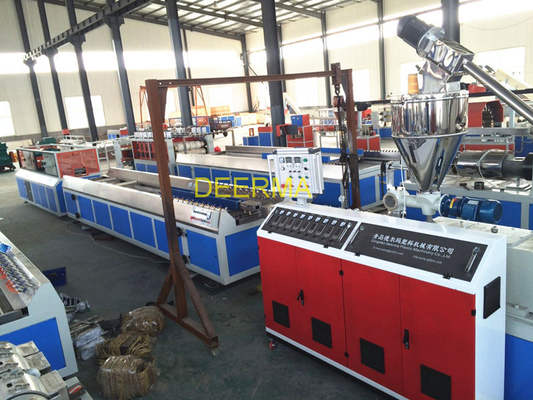

PVC UPVC Window Profile Machine / pvc window extrusion machine line

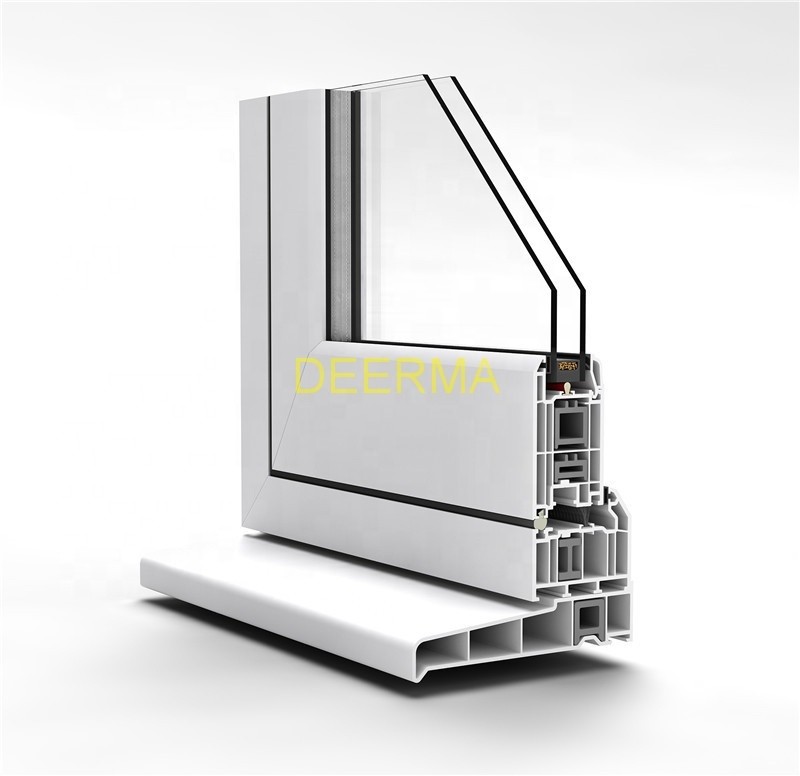

A. PVC Window profiles - which can produce by our machine
1.PVC Window & Door Profiles : 60 65 70 casement series, and 60 80 88 92 112 sliding
2.This PVC profile machine include:extruder,mould,vacuum calibration table,haul-off machine,cutter and stacker.

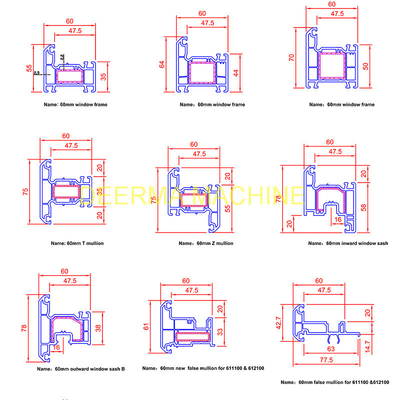

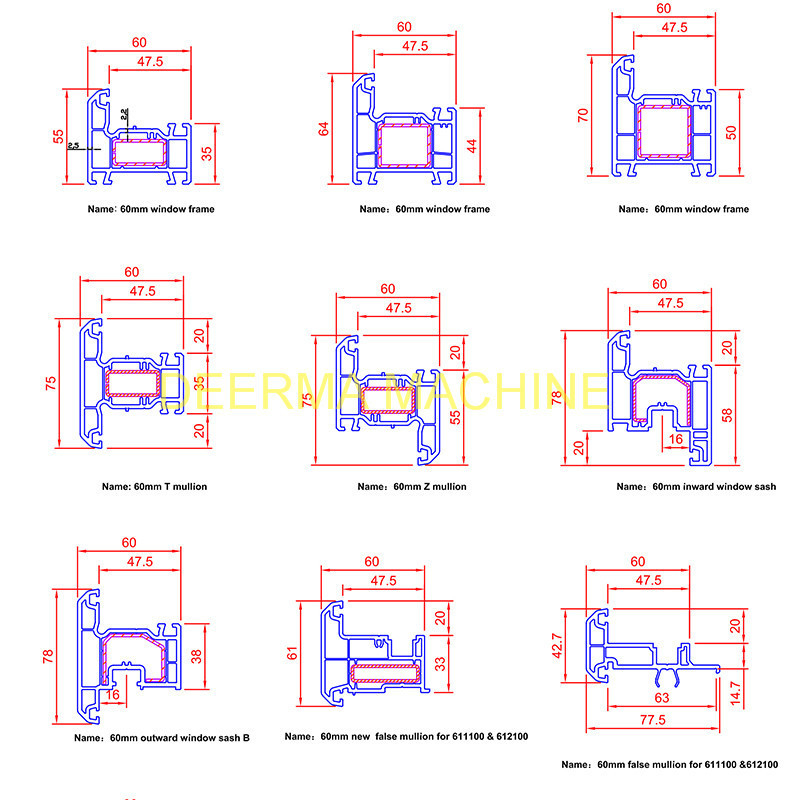

3.PVC Window Profiles : Three rails frame , Fixed window frame , Sliding Sash, Mullion , seal edge , single glass bead , screen sash....
B. Technical parameter
| Model | YF180 | YF300 | YF600 | YF800 | YF1000 |
| Max.width of product(mm) | 180 | 300 | 600 | 800 | 1000 |
| Extruder mode | SJZ51/105 | SJZ65/132 | SJZ80/156 | SJZ80/156 | SJZ92/188 |
| Extrusion capacity(kg/h) | 150 | 180 | 360 | 360 | 600 |
| Motor power(kw) | 18.5 | 37 | 55 | 55 | 110 |
| Total length(m) | 18 | 22 | 26 | 28 | 32 |
C. Main Composition
| Item | Quantity |

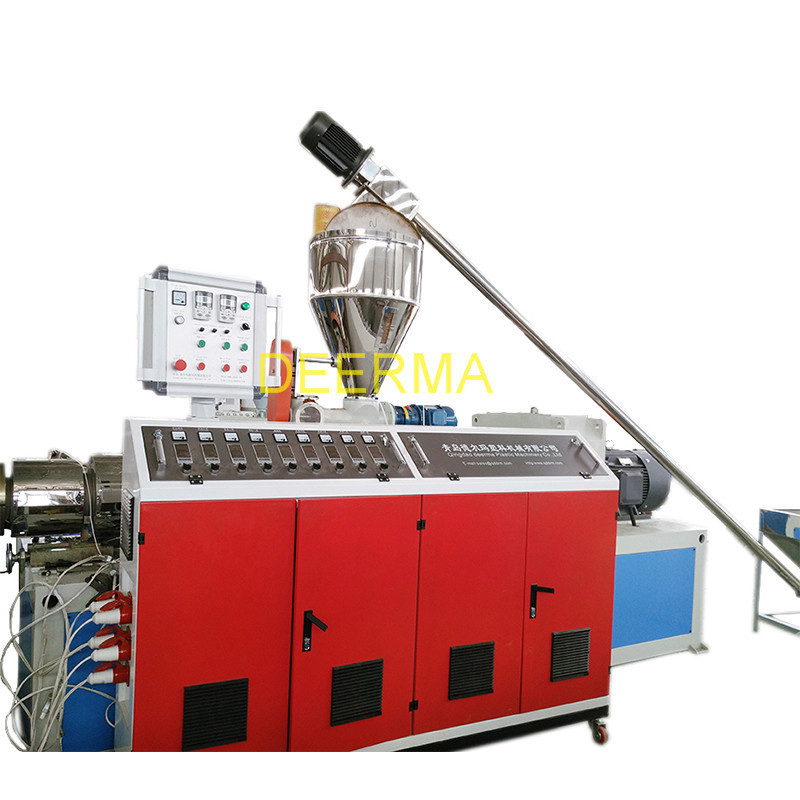

| SJSZ- XX Twin Screw Extruder with Automatic Feeding System | One set |
| Die Mold & Stock Mold | One set |

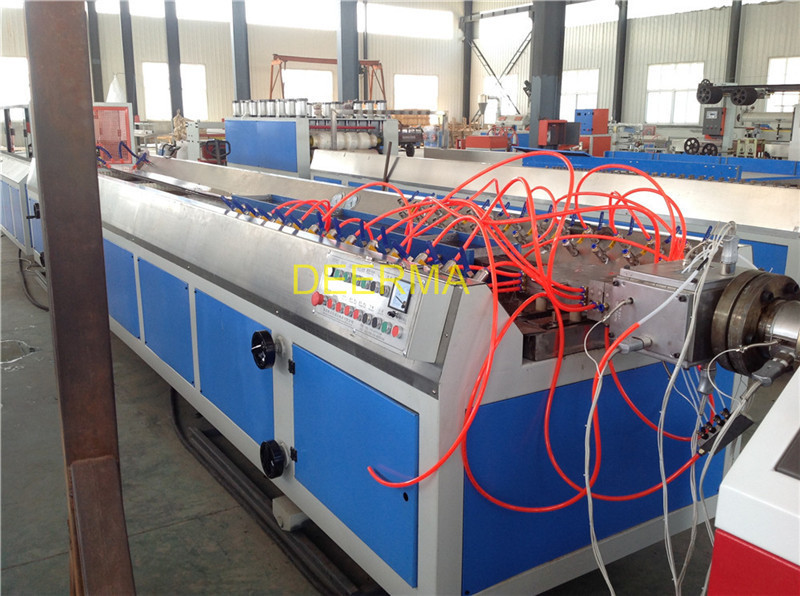

| Vacuum Calibrarion Table | One set |

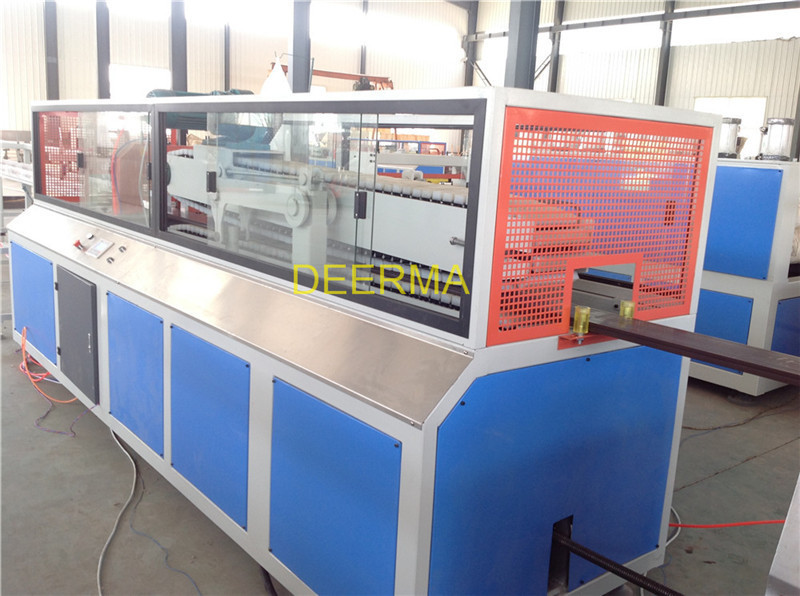

| Haul-off and Cutter Unit | One set |
| Stacker | One set |
| Electric Control System | One set |
1.Our company will provide relevant information on various technology and business consulted by customers. If clients want to visit our company, we will offer all they need for convenience.
2.After signing contract, company designs groundsill installation chart for water, electricity and gas of equipment basing on real condition and customers’ requirements and provides detail order list and matching manufacturer for reference for customer.
3.After equipment arrival, our service personnel will arrive at posted locale for installation, debugging, training and technology transfer till customers can operate independently and manufactures eligible product. Service personnel have to arrive at customer’s locale in time when we provide service for client again.
Why Choose us
1.We are China Leading Plastic Machine Manufacturer.
2.Alibaba Assessed 7 years Domestic Supplier .
3.Inspected by the Inspection Institution of SGS Certification.
4.100% QC inspection Before Shipmeng.
5.Best Quality & Best Service with Competitive price.
We have SIX this production lines in our showroom for other customer , welcome to visit our factory
