| Place of Origin: | Shandong, China |
|---|---|
| Brand Name: | Deerma |
| Price: | $50,000.00/sets 1-3 sets |
| Packaging Details: | hdpe plastic pipe extrusion line / hdpe 63-160mm pipe line<br>1.Mold package: Wooden package.<br>2.Outside package:Stretch film<br>3.Loading Qty : 1x40GP for one production line<br>4.Gross Weight : About 5 Tons |
| Supply Ability: | 5 Set/Sets per Month HDPE pipe machine |
| Applicable Industries: | Hotels, Building Material Shops, Farms, Restaurant, Home Use, Construction Works | Showroom Location: | Egypt, Peru, Saudi Arabia, Indonesia, Russia, South Korea, Chile, UAE, Romania, Bangladesh, South Africa, Nigeria, Uzbekistan |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Bearing, Gearbox, Gear, Pump | Condition: | New |
| Type: | Pipe Production Line | Pipe Material: | PE |
| Application: | Drain Pipe | Production Capacity: | 4-12 M / Min |
| Voltage: | 220V/380V/ 415V/440V | Power: | Install Power 80kw |
| Dimension(L*W*H): | 30 X 2.2 X 3.0m | Weight: | 8 Kg |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
| Machine: | Hdpe Plastic Pipe Extrusion Line / Hdpe 63-160mm Pipe Line | Model: | SJ90/30 |
| Pipe Diameter: | 160-250mm | Tractor Speed: | 4-12m/min |
| Output Capacity: | 250-350kg/h | Drive Motor: | SIEMENS |
| Inverter: | SIEMENS | Reduction Gearbox: | GUOMAO |
| Temperature Controller: | OMRON | Port: | Qingdao |
hdpe plastic pipe extrusion line / hdpe 63-160mm pipe line
Working process & Technical Parameters
|
Item |
SJ65/30 |
SJ75/30 |
SJ90/30 |
|
Max Dia. Of pipe(mm) |
16-63MM |
20-110MM |
75-160MM or 110-250mm |
|
Main machine |
SJ65/30+SJ25/25 |
SJ75/30+SJ25/25 |
SJ90/30+SJ25/25 |
|
Motor power(kw) |
37KW |
37KW |
55KW or 90KW |
|
Max. capacity(kg/h) |
50-120KG/G |
70-140KG/H |
80-160KG/H or 250-350kg/h |
|
Traction speed(m/min) |
0-12M/MIN |
0-8M/MIN |
0-8M/MIN |
|
length(mm) |
25000 |
34000 |
44000 |

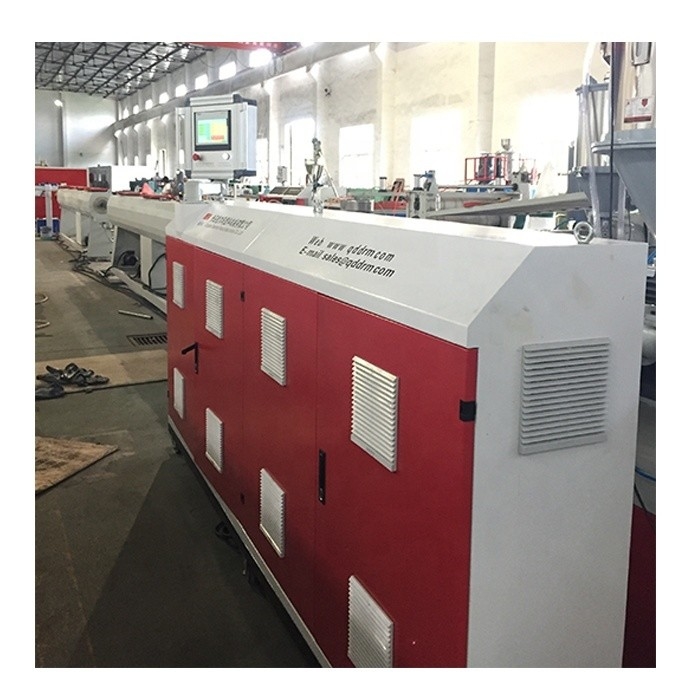

1. SJ-90×33 Single Screw Extruder with Vacuum Feeding Unit & Drying Machine (Two Set)
2. Die and Mould

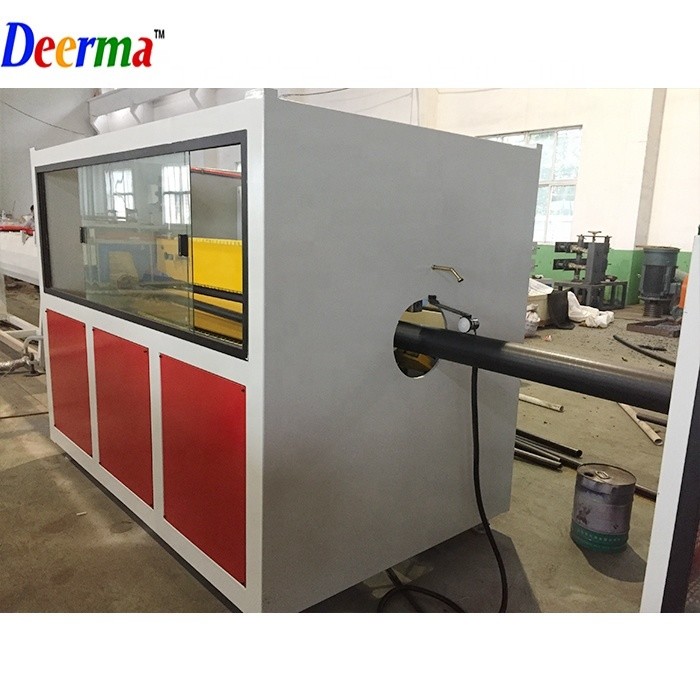

3.Vacuum Calibration Device

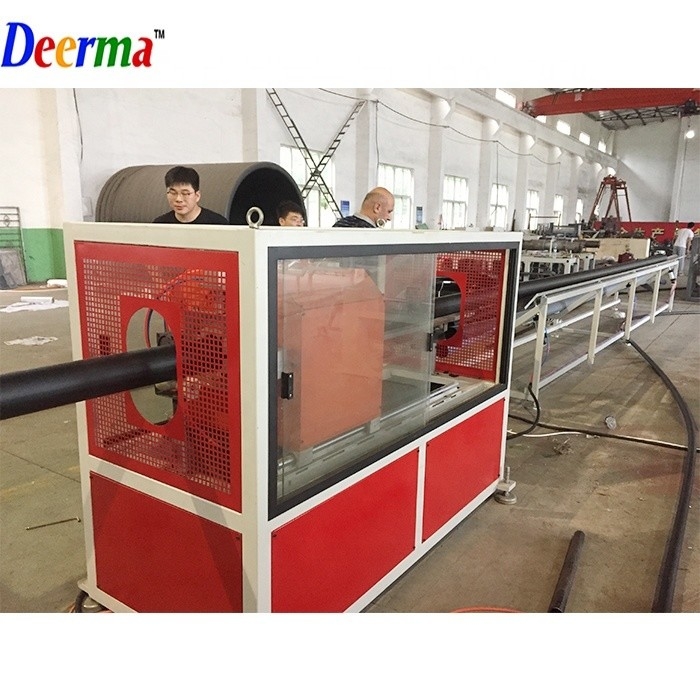

4.Tractor
7.No Dust Cutting Device

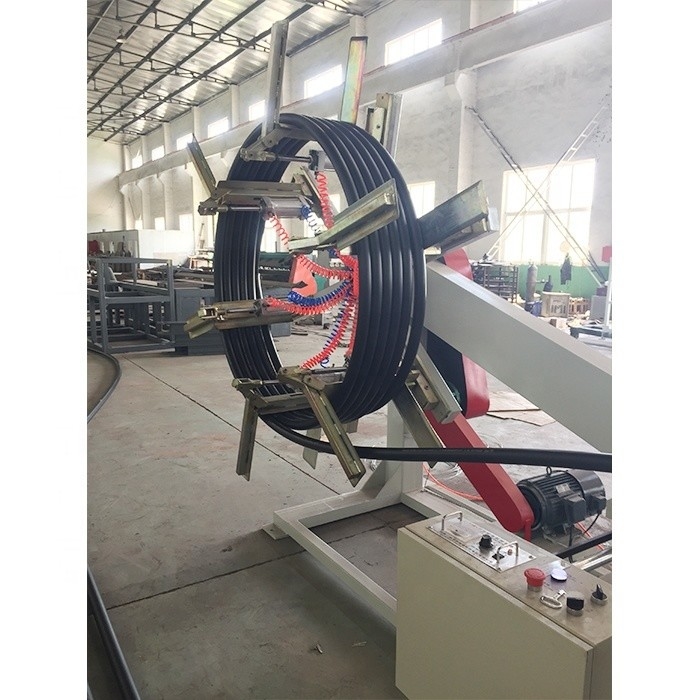

8. Winder Machine
CERTIFICATE OF CONFORMITY AND ISO9001 QUALITY MANAGEMENT SYSTEM CERTFICATION
A: Deerma Company is an industry manufacture of Extrusion Machines.
Q:All of your products are made by your self or compacted via purchasing the others?
A: we have independent technical team who focus on design & development & Manufacture extrusion machines. all the products are made by our technical team.
Q:Annual Production Capacity( Previous Year)
A: About 80 lines from 2014.1 to 2014.12 and total revenue is about USD 2500000
Q: Is there quality control on all production lines?
Yes, all production lines have adequate quality control
Q:Do the QA/QC inspectors work independently from the production line? Yes
Q:How many QA/QC inspectors in total? 4
