| Place of Origin: | Shandong, China |
|---|---|
| Brand Name: | Deerma |
| Price: | $30,000.00/sets 1-2 sets |
| Packaging Details: | 1.wooden case and seaworthy package <br>PPR HDPE PE Pipe Making Machine / PE Pipe Plastic Machine Price |
| Supply Ability: | 5 Set/Sets per Month PPR HDPE PE Pipe Making Machine / PE Pipe Plastic Machine Price |
| Condition: | New | Plastic Processed: | PE, HDPE, PE/PP, LDPE |
|---|---|---|---|
| Application: | PIPE | Screw Design: | Single-screw |
| Screw Material: | 38CrMoALA | Screw Diameter (mm): | 65 Mm |
| Screw L/D Ratio: | 30:1 | Screw Speed (rpm): | 30 Rpm |
| Showroom Location: | Egypt, Turkey, United States, Italy, Viet Nam, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Morocco, Kenya, Argentina, UAE, Colombia, Algeria, Romania, Ukraine, None | Voltage: | 380V/3P/50HZ Or As Local Voltage |
| Dimension(L*W*H): | 20 X 3 X3 | Power (kW): | 37 |
| Weight: | 5 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Applicable Industries: | Hotels, Building Material Shops, Manufacturing Plant, Farms, Construction Works |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Pump, PLC, Gearbox | Machinery Test Report: | Not Available |
| Plastic Machine: | PPR HDPE PE PVC Pipe Making Machine | Product Application: | Water Supply, Gas Suply |
| Model: | SJ65/33 PE Pipe Production Line | PE Pipe Diameter: | 20-63mm |
| Output Capacity: | 80-120 Kg/h | Tractor Speed: | 0-12 M/min |
| Drive Motor: | Motor For Siemens | Temperature Controller: | Controller For Omron |
| Operator: | 1-2 Persons Per Shift | Automatic Grade: | Automatic |
| Port: | Qingdao |
What is the feature of our PE Pipe Mahcine
Technical Parameters
| Item | SJDRM75 | SJDRM125 | SJDRM250 | SJDRM630 | SJDRM800 |
| Max Dia. Of pipe(mm) | 75 | 125 | 250 | 630 | 800 |
| Main machine | SJ65/30 | SJ75/30 | SJ90/30 | SJ120/30 | SJ120/33 |
| Motor power(kw) | 60 | 75 | 160 | 260 | 600 |
| Motor type | Direct current model | Direct current model | Direct current model | Direct current model | Direct current model |
| Max. capacity(kg/h) | 160 | 260 | 400 | 900 | 1150 |
| Traction speed(m/min) | 0.5DRM8 | 0.3DRM4 | 0.2DRM2 | 0.1DRM1 | 0.15DRM1.5 |
| Max. traction(N) | 10000 | 15000 | 30000 | 40000 | 50000 |
| Cutting type | Disc type cutting | Disc type cutting | Planet cutting | Planet cutting | Planet cutting |
| length(mm) | 22000 | 34000 | 44000 | 58000 | 60000 |
Main Composition
| Item | Quantity |
| SJ-65×33 Single Screw Extruder | two set |
| Die And Mould | one set |
| Vacuum Calibration Device | one set |
| Spray Cooling Tanks | one set |
| Tractor | one set |
| No Dust Cutting Device | one set |
| Stacker | one set |
Machines's Pictures

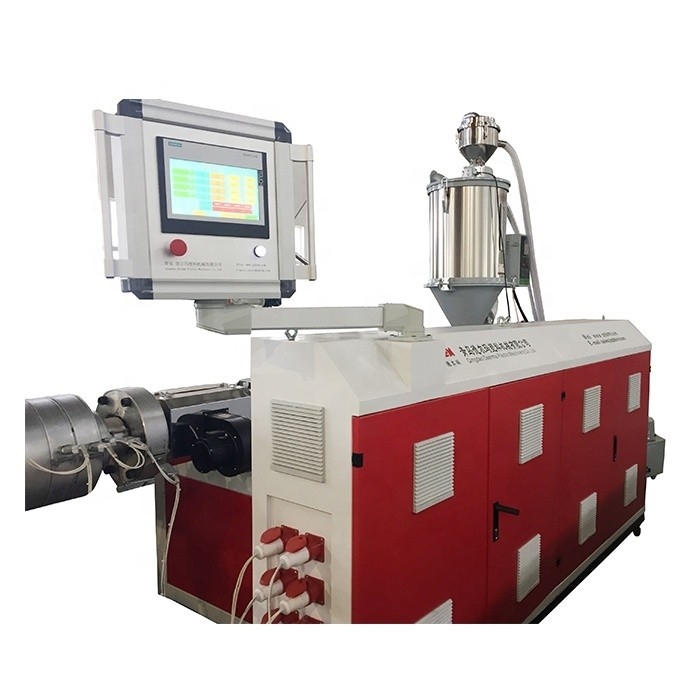

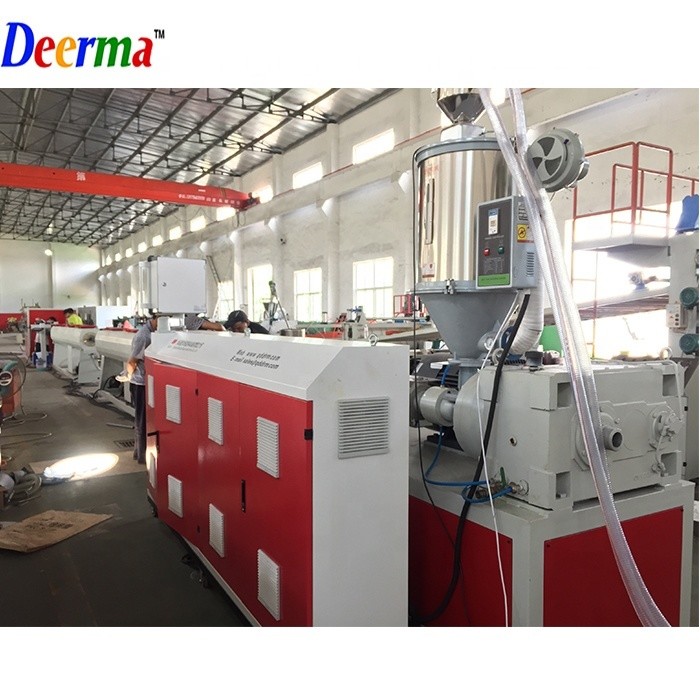

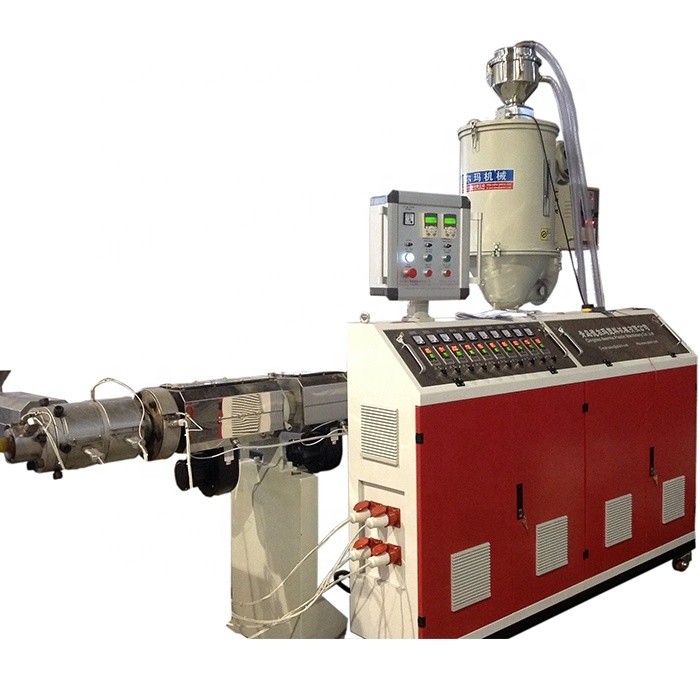

1.SJ65/33 Single screw extruder Equiped with Vacum feeding machine & Drying Machine (SIEMENS MOTOR)

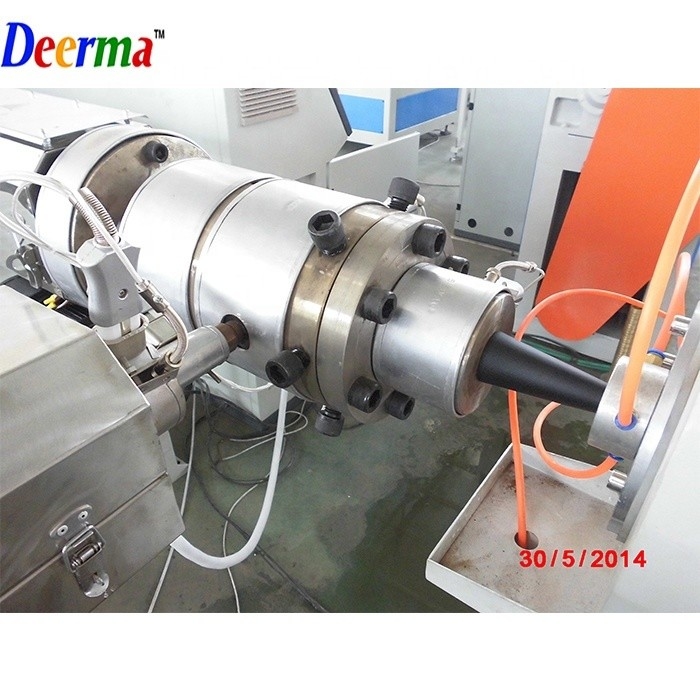

2.Die and Mould

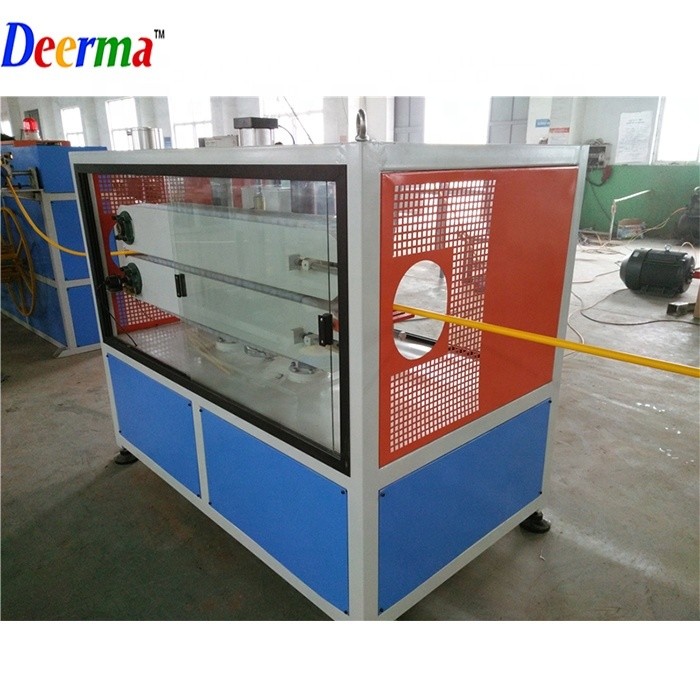

4.Vacuum Calibration Device

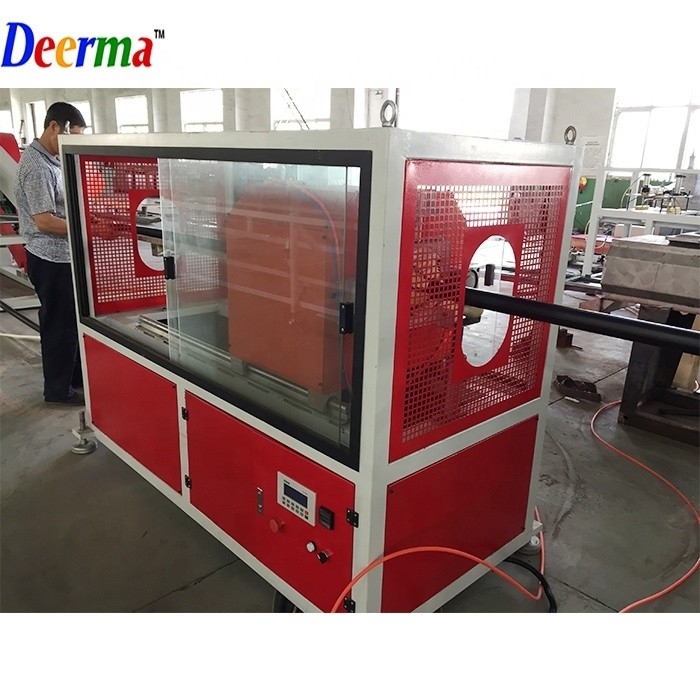

5.Spray Cooling Tank
6.Tractor + cutter + printer
7.Electric control system
| Temperatue meter | Omron |
| Contactor | SIEMENS |
| Relay | SIEMENS |
| Transducer | SIEMENS |
| Power light, button | SIEMENS |
| Inveter | SIEMENS |
PASSED CE ISO9001 SGS TUV....
| Certification | Certified By | Certificate No. | Business Scope Expiry Dat | Expiry Date |
| ISO 9001:2008 | Beijing Hangxie Certification |
| Design and Production of | 17/Sep./2013 |
| CE | European | CN.CE.0680-10/10 | Plastic Extrusion Machinery & | 29/Oct./2010 |
| TUV | TÜV Rheinland | 7467484_P+T | Production & Trade Assessment | 15/Jan./2014 14/Jan./2015 |
| Main Product Lines Verification Report | TÜV Rheinland | 7467487_P+T | Main Product Lines Verification | 15/Jan./2014 14/Jan./2015 |
| SGS | SGS-CSTC Standards Technical Services Co.,Ltd Focus Technology Co., Ltd | QIP-ASR155278 | Extrusion Machine, Pipe Machine ,profile Machine, Roof Machine… | 15/May./ |
Equipment warranty
1. About the equipment, Deerma promised the good quality of 12 month.
2. during the warranty, no purposely and artificially damage change the damaged part, we will freely maintenance and technical services.
3. Over 12 months, Buyer’s needs to pay the producing cost of the worn part, and life-long supply the part of equipment and freely device
Testing installation
1. We will do machine test-running at our workshop before delivery and we’ll invite you come to our company to testing the complete line with us together
2. After the machinery arrived at buyer’s factory, the seller should send technician to buyer’s company install and test the machinery .
The buyer should pay the fee of air ticket , accommodation and the salary of technician USD 60 dollars per day .
