37KW SIEMENS Motor
ABB Inverters
Omron Temperature meter
Capacity : 80-120kg/h
| Place of Origin: | Shandong, China |
|---|---|
| Brand Name: | Deerma |
| Price: | $25,000.00/sets >=1 sets |
| Packaging Details: | hdpe pipe manufacturing machine / hdpe pipe extrusion machine <br>1.wooden case and seaworthy package <br>2. 40HQ |
| Supply Ability: | 5 Set/Sets per Month hdpe pipe manufacturing machine / hdpe pipe extrusion machine |
| Condition: | New | Plastic Processed: | PE |
|---|---|---|---|
| Application: | PIPE, Sheet, Profile, Plates | Screw Design: | Single-screw |
| Screw Material: | 38CrMoALA | Screw Diameter (mm): | 65 Mm |
| Screw L/D Ratio: | 33:1 | Screw Speed (rpm): | 60 Rpm |
| Showroom Location: | Egypt, Peru, India, Russia, Thailand, Kenya, South Korea, Algeria, Romania, South Africa | Voltage: | 380V/3P/50HZ Or As Local Voltage |
| Dimension(L*W*H): | L20000*W2100*H2600mm | Power (kW): | 37 |
| Weight: | 5 KG | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Applicable Industries: | Hotels, Farms, Home Use |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Pump, Gear, Engine | Machinery Test Report: | Provided |
| Plastic Machine: | Hdpe Pipe Manufacturing Machine / Hdpe Pipe Extrusion Machine | Model: | SJ65/33 PE Pipe Production Line |
| PE Pipe Diameter: | 20-63mm | Output Capacity: | 80-120 Kg/h |
| Tractor Speed: | 0-12 M/min | Product Application: | Water Supply, Gas Suply |
| Drive Motor: | Siemens | Temperature Controller: | Omron |
| Operator: | 1-2 Persons Per Shift | Power(W): | Installed Power80kw;consumption Power55kw |
| Marketing Type: | Ordinary Product | Port: | Qingdao |
Working process(It can produce 20-1200mm HDPE pipe )

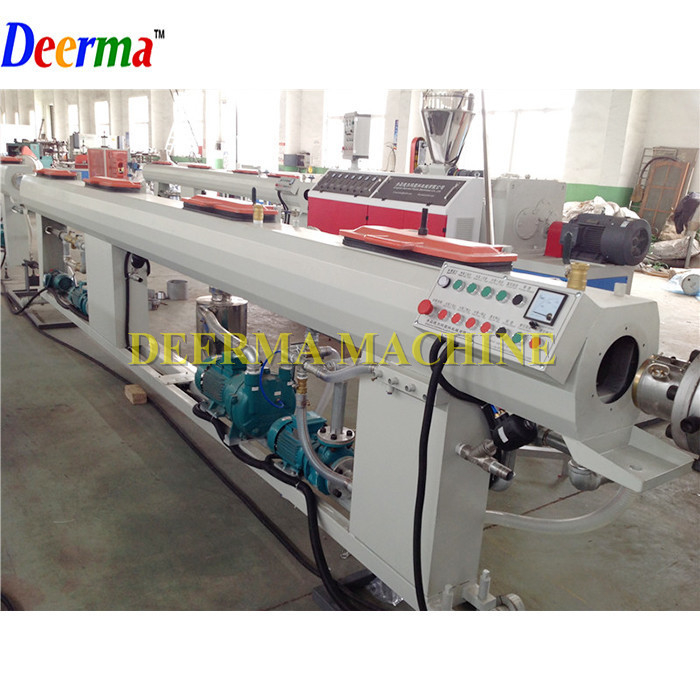

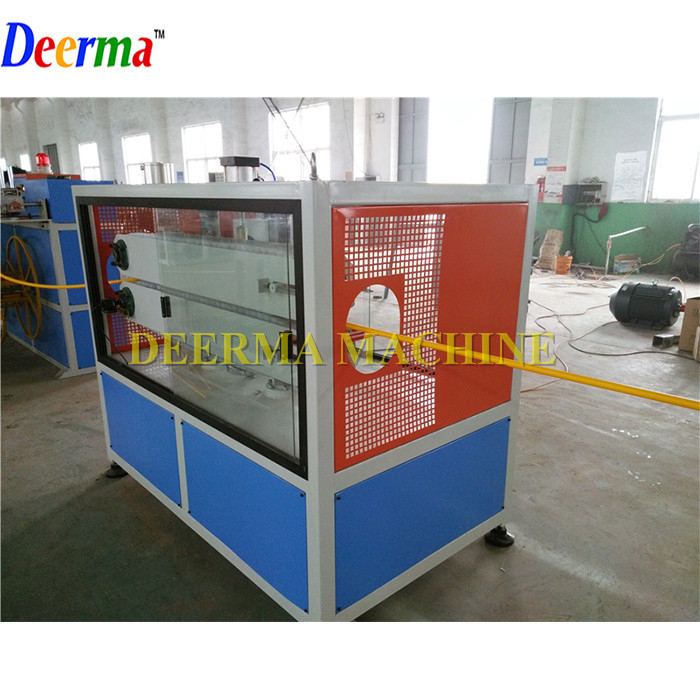

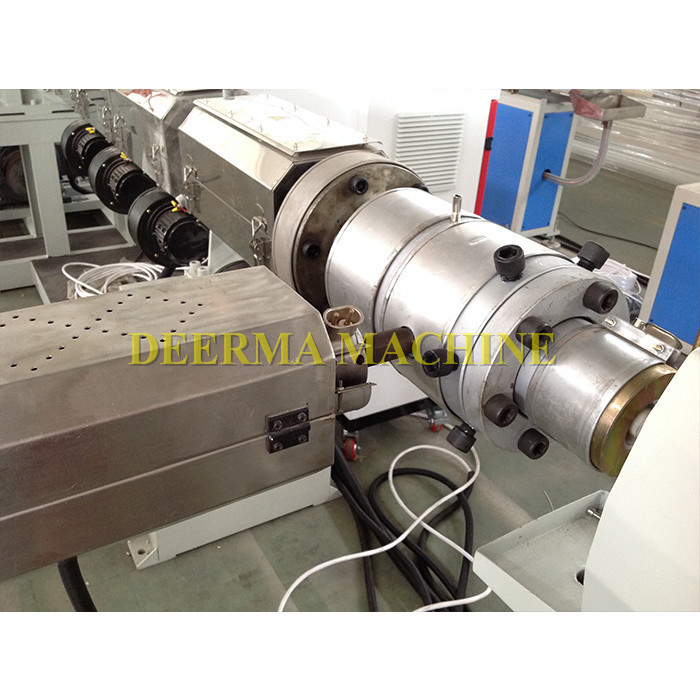

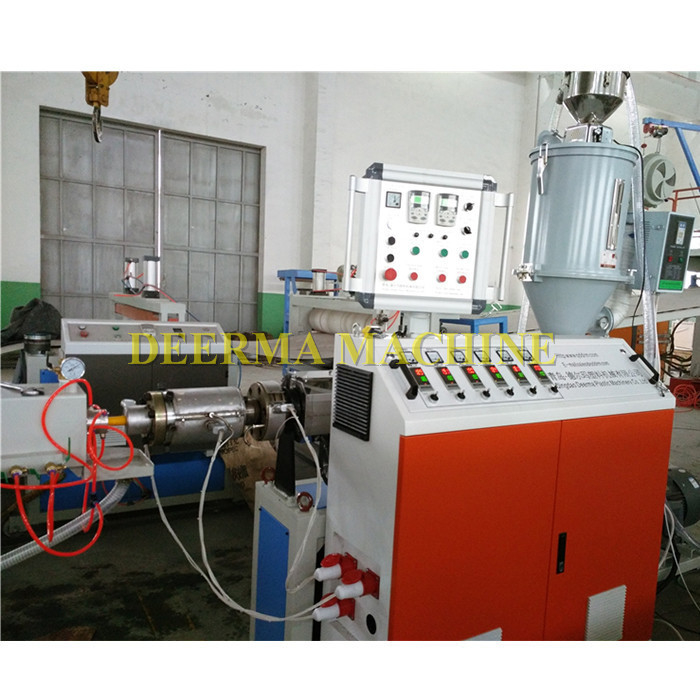

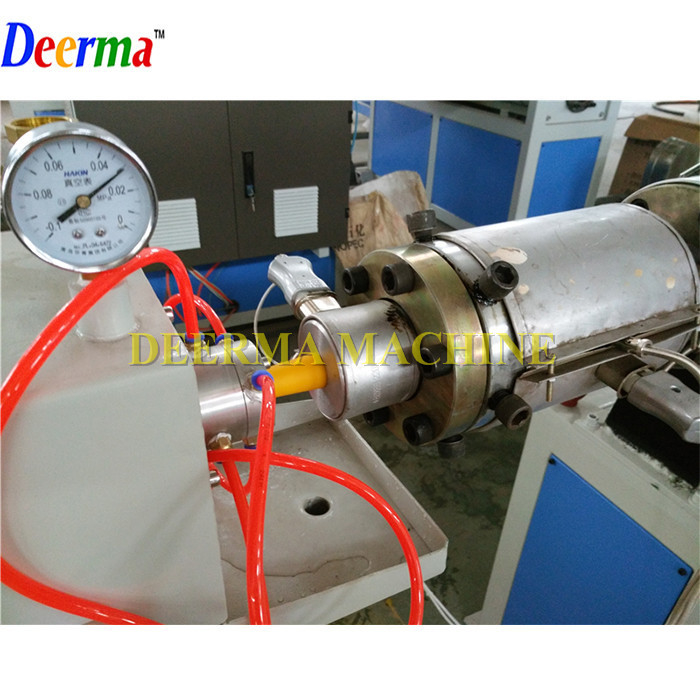

Raw material +master batches → mixing → vacuum feeder→ material dryer → single screw extruder ( small CO-extruder ) → mould → vacuum calibration tank → spray cooling tank ( water tank) → haul-off unit → cutting machine→ stacker / winder
Model | Pipe Range(mm) | Hauling Speed(m/min) | Total Length(m) | Output Capacity(kg/h) |
PE63 | ∅16-∅63 | 1.2 - 12 | 35 | 80 - 120 |
PE110 | ∅20-∅110 | 1.0 - 10 | 38 | 150 - 250 |
PE160 | ∅50-∅160 | 0.8 - 8 | 40 | 200 - 250 |
PE250 | ∅75-∅250 | 0.38 - 3.8 | 42 | 250 - 350 |
PE315 | ∅90-∅315 | 0.3 - 3 | 44 | 300 - 350 |
PE450 | ∅110-∅450 | 0.2 - 2.0 | 56 | 350 - 450 |
PE630 | ∅250-∅630 | 0.1 - 1.0 | 62 | 700 - 800 |
PE800 | ∅315-∅800 | 0.07 - 0.7 | 68 | 900 - 1100 |
PE1000 | ∅400-∅1000 | 0.06 - 0.6 | 70 | 1000 - 1100 |
PE1200 | ∅500-∅1200 | 0.05 - 0.5 | 72 | 1000 - 1300 |
PE1600 | ∅710-∅1600 | 0.04 - 4 | 74 | 1200 - 1500 |
PE2000 | ∅710-∅1600 | 0.03 - 3 | 76 | 1400 - 1700 |
Certification | Certified By | Certificate No. |
ISO 9001:2008 | Beijing Hangxie Certification Center Co., Ltd.,CNAS | 03413Q21640R1M |
CE | European Inspection and Certification Company S.A. | CN.CE.0680-10/10 |
TUV | TÜV Rheinland | 7467484_P+T |
SGS | SGS-CSTC Standards Technical Services Co.,Ltd | QIP-ASR155278 |
Q: Your company is an industrial manufacture factory or a transactional company ?
A: Deerma Company is an industry manufacture of Extrusion Machines.
Q:All of your products are made by your self or compacted via purchasing the others?
A: we have independent technical team who focus on design & development & Manufacture extrusion machines. all the products are made by our technical team.
Q:Annual Production Capacity( Previous Year)
A: About 80 lines from 2014.1 to 2014.12 and total revenue is about USD 2500000
Q: Quality Control Management
Q: Is there quality control on all production lines?
Yes, all production lines have adequate quality control
Q:Do the QA/QC inspectors work independently from the production line? Yes
Q:How many QA/QC inspectors in total? 4
