| Place of Origin: | Shandong, China |
|---|---|
| Brand Name: | DEERMA |
| Minimum Order Quantity: | 2 sets |
| Price: | $25,000.00/sets >=2 sets |
| Packaging Details: | stretch film for packing |
| Supply Ability: | 10 Set/Sets per Month |
| Condition: | New | Plastic Processed: | PE, PP, PVC, PA |
|---|---|---|---|
| Application: | PIPE | Screw Design: | Single-screw |
| Screw Material: | 38CrMoALA | Screw Diameter (mm): | 65 Mm |
| Screw L/D Ratio: | 30:1 | Screw Speed (rpm): | 150 Rpm |
| Showroom Location: | None | Voltage: | 380V 3Phase 50HZ Or As Your Demand |
| Dimension(L*W*H): | L12*W2*H2.5m | Power (kW): | 35 |
| Weight: | 100000 KG | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Applicable Industries: | Hotels, Building Material Shops, Home Use |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Motor, Gear, PLC | Machinery Test Report: | Provided |
| Extrusion Machine: | 16-50mm PP/PE/PVC/PA Single Corrugated Pipe Machine | Output Capacity: | 80-100 Kg/ Hr |
| Installed Power: | 35kw | Actual Consumption Power: | About 25kw |
| Motor: | SIEMENS | Inverter: | ABB |
| Temperature Meter: | OMRON | Contactor: | SCHNEIDER |
| Production Speed: | 8-15m/min | Final Product: | Corrugated Pipe |
16-50mm PP/PE/PVC/PA single corrugated pipe machine production line
Max line speed 30 meters per minute.
PVC plasticcorrugated pipe machines is made of super quality steel. The module connection is set in the closed machine cavity. The inner and outer side of corrugated pipe is even and smooth.
The forced cooling system can enhance the quality and capacity of product. Corrugated pipes are widely used for wire sleeves, auto, home and medical appliances.
Technial parameters:
| Pipe diameter(mm) | 4.5-9 | 9-32 | 16-50 | |
| Extruder model | SJ-30 | SJ-50 | SJ-65 | |
| Screw L/D | 30:1 | 30:1 | 30:1 | |
| Output kg/h | 10 | 30 | 50 | |
| Extruder motor | 4 | 15 | 18.5 | |
| Corrugators power kw | 1.1 | 1.5 | 2.2 | |
| Moulds pairs | 42 | 38,50 | 50 | |
| Cooling mode | Water Cooling and fan cooling | |||
| Extruding speed(m/min ) | 6-10 | 8-12 | 8-12 | |
| Account number mode | Inducting speed | |||
| Winding pipe mode | Automatic winding and manually | |||
Main mahine list
1.SJ-30/50/65 Single Screw Extruder

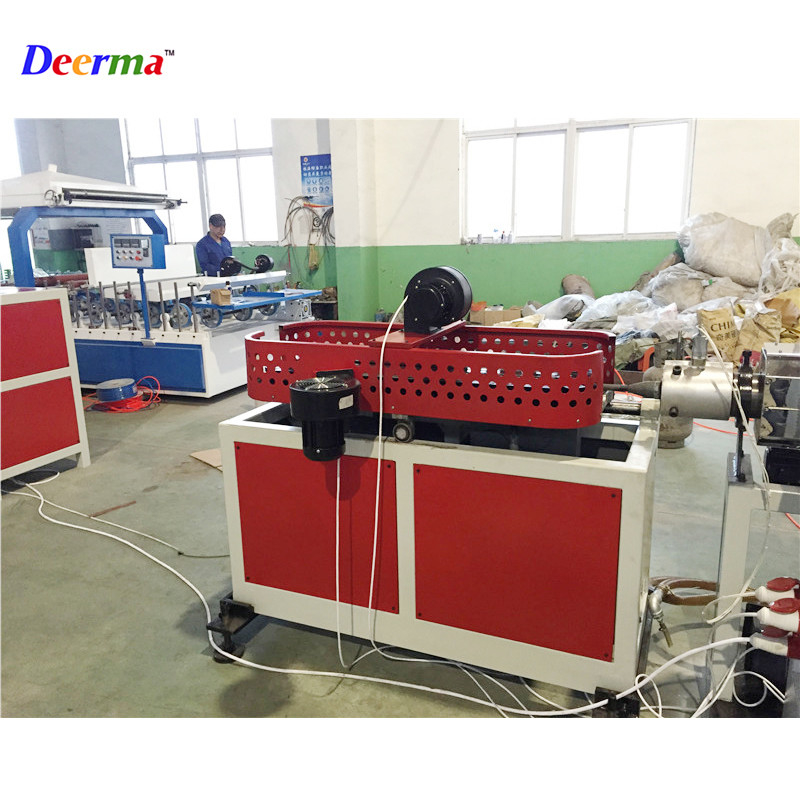

2.Forming machine

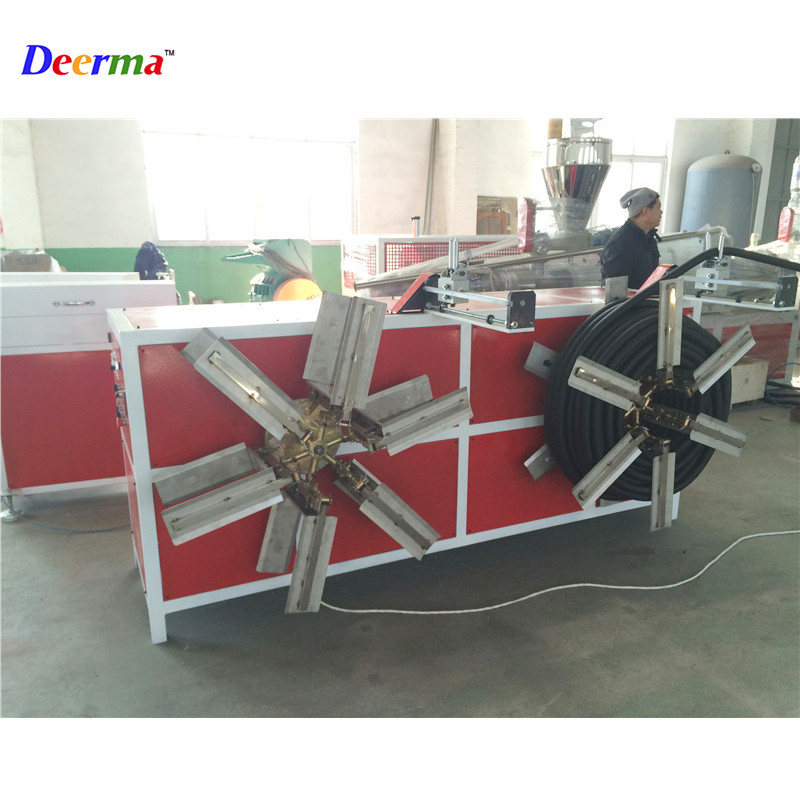

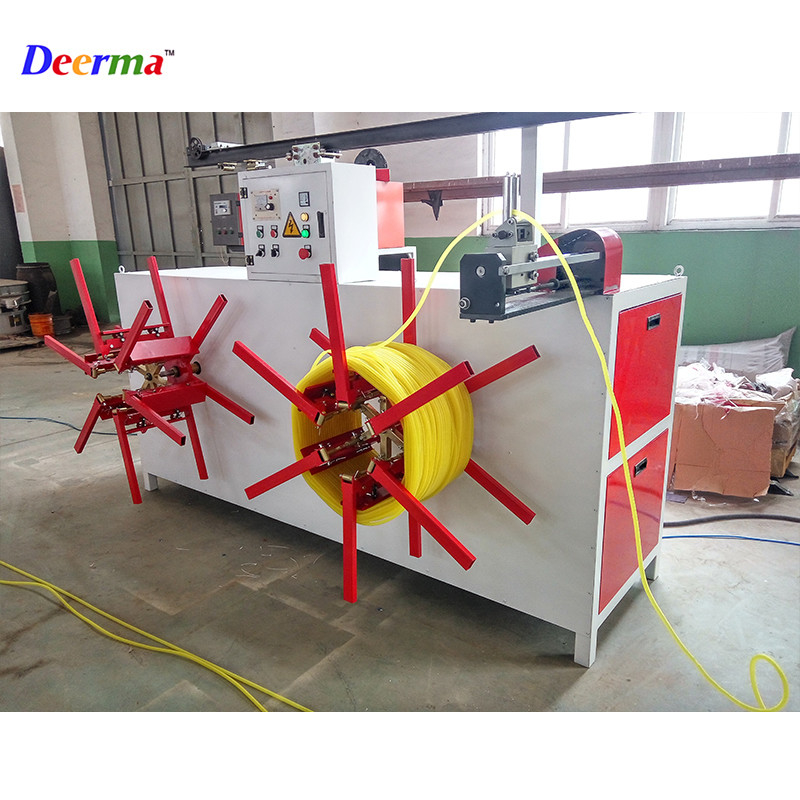

3.Double station winder
4.Vacuum loading device
5.One set mould

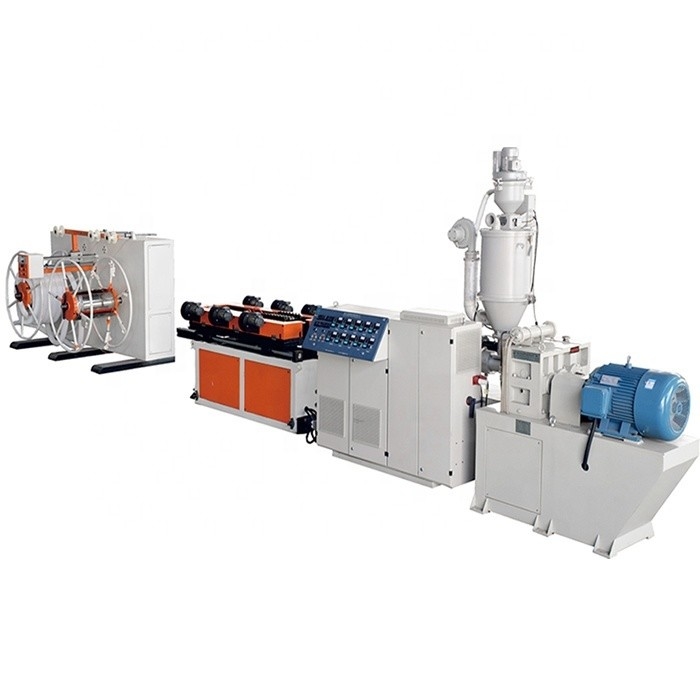

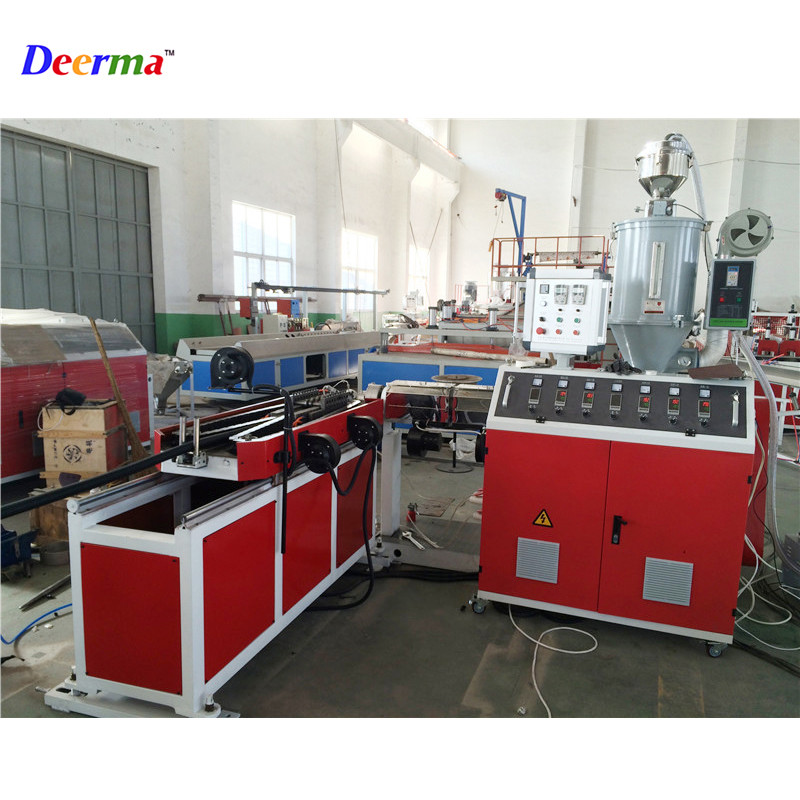

Machine Pictures
Output products:
...
