| Place of Origin: | Shandong, China |
|---|---|
| Brand Name: | Deerma |
| Price: | $28,000.00/sets 1-2 sets |
| Packaging Details: | HDPE Pipe extruder machine plastic / PE Pipe plastic machine / PE Pipe making machine <br>1.wooden case and seaworthy package |
| Supply Ability: | 5 Set/Sets per Month HDPE Pipe extruder machine plastic / PE Pipe plastic machine / P |
| Condition: | New | Plastic Processed: | PE |
|---|---|---|---|
| Application: | PIPE, Profile, Plates | Screw Design: | Single-screw |
| Screw Material: | 38CrMoALA | Screw Diameter (mm): | 65 Mm |
| Screw L/D Ratio: | 30:1 | Screw Speed (rpm): | 60 Rpm |
| Showroom Location: | Egypt, Peru, India, Russia, Thailand, Kenya, South Korea, Algeria, Romania, South Africa | Voltage: | 380V/3P/50HZ Or As Local Voltage |
| Dimension(L*W*H): | L20000*W2100*H2600mm | Power (kW): | 80 |
| Weight: | 5 KG | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Applicable Industries: | Hotels, Building Material Shops, Home Use |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Pump, Gear, Engine | Machinery Test Report: | Provided |
| Automatic Grade: | Automatic | Product Application: | Water Supply, Gas Suply |
| Model: | SJ65/33 PE Pipe Production Line | PE Pipe Diameter: | 20-63mm |
| Tractor Speed: | 0-12 M/min | Drive Motor: | Siemens |
| Temperature Controller: | Omron | Operator: | 1-2 Persons Per Shift |
| Marketing Type: | Ordinary Product | Port: | Qingdao |
What is the feature of our PE Pipe Mahcine
Technical Parameters
| Model | SJ65/33 | SJ75/33 | SJ90/33 | SJ120/33 | SJ150/33 |
| Max Dia(mm) | 75 | 160 | 250 | 315 | 630 |
| Installtion power(kw) | 65 | 150 | 200 | 280 | 420 |
| Drawing speed(m/min) | 0-12 | 0-8 | 0-6 | 0-4 | 0-2 |
| Total Length(m) | 28 | 36 | 50 | 66 | 72 |
| Putput(kg/hr) | 80-120 | 80-150 | 180-260 | 300-400 | 450-600 |
Main Composition (the list of one of PE Pipe Production Line)
| Item | QTY |
| SJ65/33 Single screw extruder Equiped with Vacum feeding machine & Drying Machine | 1set |
| SJ25/25 Single screw extruder for marking line | 1set |
| Die and Mould | 1set |
| Vacuum Calibration Device | 1set |
| Spray Cooling Tank | 1set |
| Tractor | 1set |
| No Dust Cutting Device | 1set |
| Stacker | 1set |
Machines's Pictures

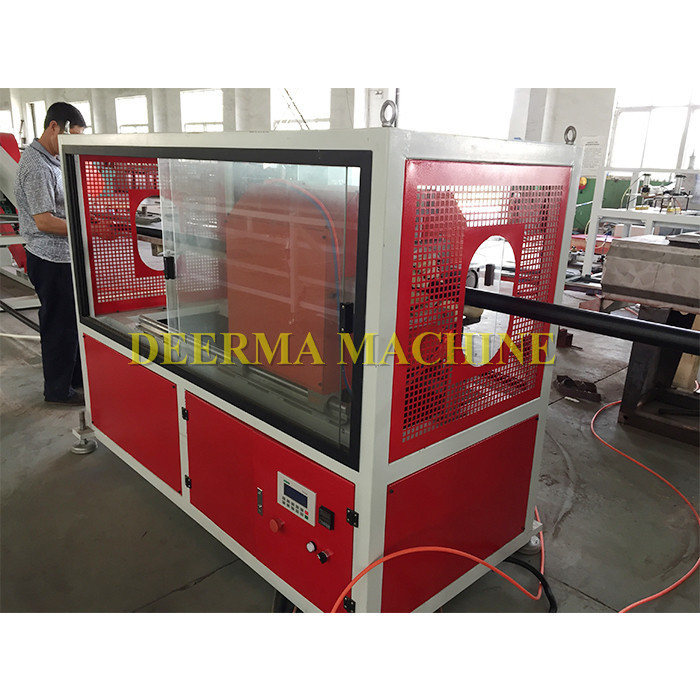

1.SJ65/33 HDPE PIPE MACHINE

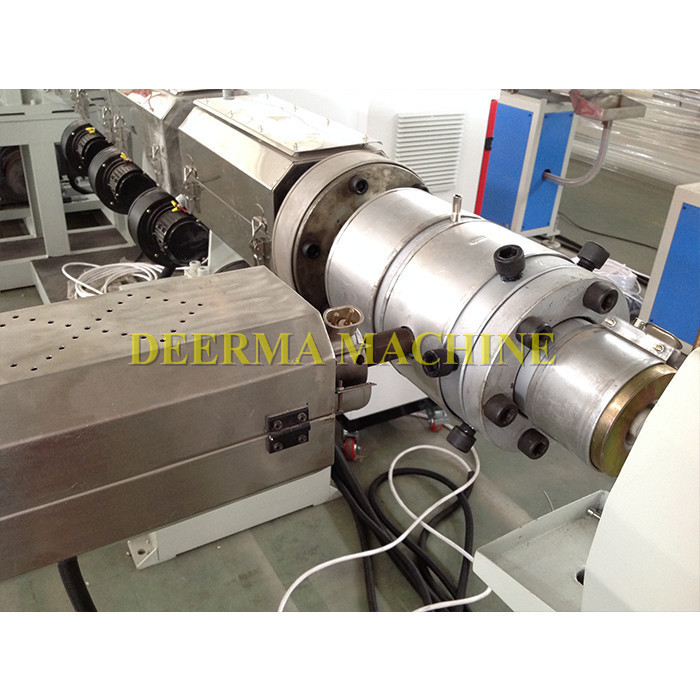

2.SJ90/33 HDPE PIPE MACHINE

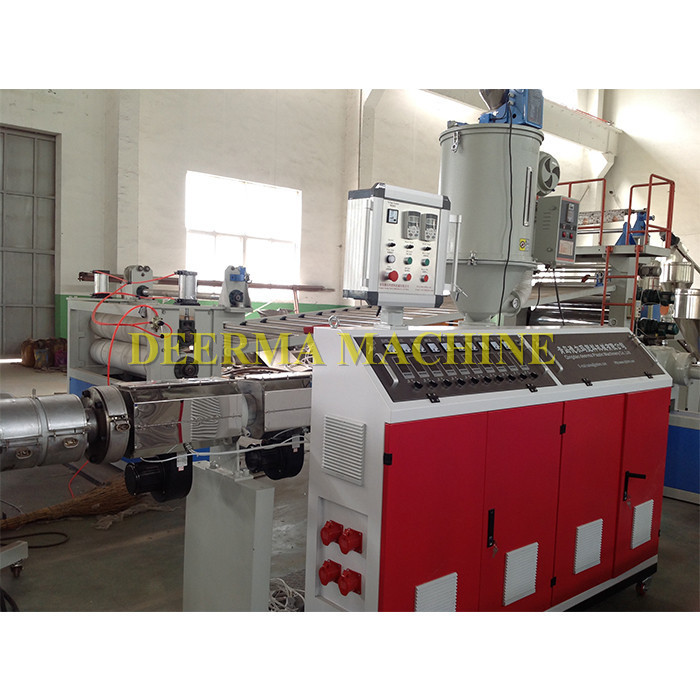

3.SJ75+ SJ90 Three-Layer HDPE PIPE CO-EXTRUSION MACHINE
Electric control system
| Temperatue meter | Omron |
| Contactor | SIEMENS |
| Relay | SIEMENS |
| Transducer | SIEMENS |
| Power light, button | SIEMENS |
| Inveter | SIEMENS |
20-110mm PE Pipe Machine with winder
https://youtu.be/KC3sOFnYZCo
30-100mm PE Pipe Machine with winder
https://youtu.be/ibK_ISSu0-A
Three-Layer PE Pipe Co-extrusion Machine
https://youtu.be/JG3RyNRR82c
50-160mm Three-Layer PE Pipe Co-extrusion Machine
https://youtu.be/vJJYU7EN4sk
Laser printer PE pipes
https://youtu.be/0N0yMxcsENo
160mm PP PE Pipe Machine
https://youtu.be/CUPXigPrQhY
16-32mm PE PPR Pipe Machine
https://youtu.be/4OuK3cJT2nQ
20-63mm HDPE Pipe Machine
https://youtu.be/b15_u9hgCAE
HDPE PP Pipe Machine
https://youtu.be/J8LgL2HBEx0
HDPE Pipe Machine
https://youtu.be/5fe6pSAP_Yk
Plastic (granules) automatic charger
https://youtu.be/7ejdefAO5A8
