| Place of Origin: | Shandong, China |
|---|---|
| Brand Name: | deerma |
| Price: | $15,000.00 - $90,000.00/sets |
| Packaging Details: | PVC Pipe Machine Price / PVC Pipe Making Machine / Manufacturing Machine <br>1.Mold package: Wooden package. <br>2.Outside package:Stretch film <br>3.Loading Qty : 1x40GP for one production line <br>4.Gross Weight : About 8 Tons |
| Supply Ability: | 30 Set/Sets per Year |
| Condition: | New | Plastic Processed: | PVC |
|---|---|---|---|
| Application: | PIPE | Screw Design: | Double-screw |
| Twin Screw Type: | Counter-rotating Conical Twin-screw | Screw Material: | 38CrMoALA |
| Screw Diameter (mm): | 65 | Screw L/D Ratio: | 132:1 |
| Screw Speed (rpm): | 40 Rpm | Showroom Location: | None |
| Voltage: | 380V | Dimension(L*W*H): | 20*3*3 |
| Power (kW): | 45 | Weight: | 8 KG |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |
| Applicable Industries: | Manufacturing Plant, Construction Works | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Pump, PLC, Gearbox |
| Machinery Test Report: | Provided | Raw Material: | PVC Resin |
| Usage: | Plastic Forming Machine | Processing Type: | Extruding Process |
| Inverter: | ABB Brand | Motor: | SIEMENS Brand |
| Contactor: | Siemens Contactor | Capacity: | 200-250kg/h |
| Pipe Diameter: | 20-63mm | L/D: | 51/105 65/132 |
| Cooling Way: | Recycling Water Cooling | Port: | QINGDAO |
PVC Pipe Machine PVC Pipe Making Machine With Price
16mm-630mm Plastic PVC Pipe Machine
Process flow:
PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → discharging rack
Technical Parameters
| Model number | PVC-16/63 | PVC-20/110 | PVC-50/160 | PVC-75/250 | PVC-110/315 | PVC-200/450 | PVC-315/630 |
| Pipe diameter | 16-63mm | 20-110mm | 50-160mm | 75-250mm | 110-315mm | 200-450mm | 315-630mm |
| Max output | 120kg/h | 120kg/h | 180kg/h | 300kg/h | 450kg/h | 650kg/h | 800kg/h |
| Production rate | 1.5-15m/min | 0.8-8m/min | 0.5-5m/min | 0.4-4m/min | 0.3-2m/min | 0.1-1m/min | 0.07-0.7m/min |
| Extruder model | SJZ-51/105 | SJZ-51/105 | SJZ-55/110 | SJZ-65/132 | SJZ-80/156 | SJZ-92/188 | SJZ-92/188 |
| Installed power | 45kw | 45kw | 55kw | 75kw | 105kw | 160kw | 205kw |
| Center height | 1000mm | 1000mm | 1000mm | 1000mm | 1100mm | 1100mm | 1200mm |
| Installation area | 22*2.5*2.0m | 24*2.8*2.0m | 24*2.8*2.0m | 30*2.8*2.2m | 35*3.0*2.4 m | 36*3.0*2.4 m | 38*3.2*2.8 m |
Machines's Pictures

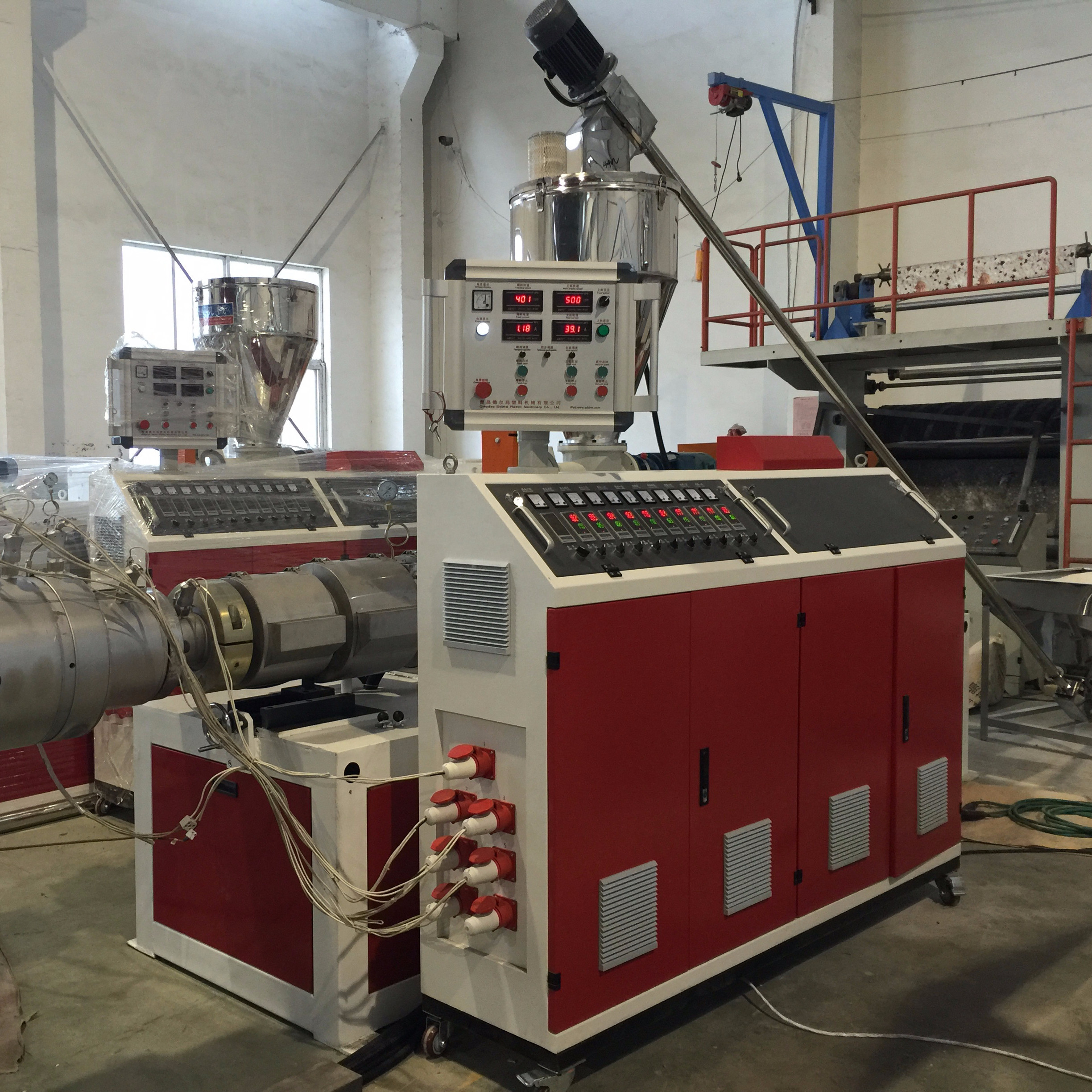

1.PVC pipe machine-Twin screw extruder with Automatic feeding system

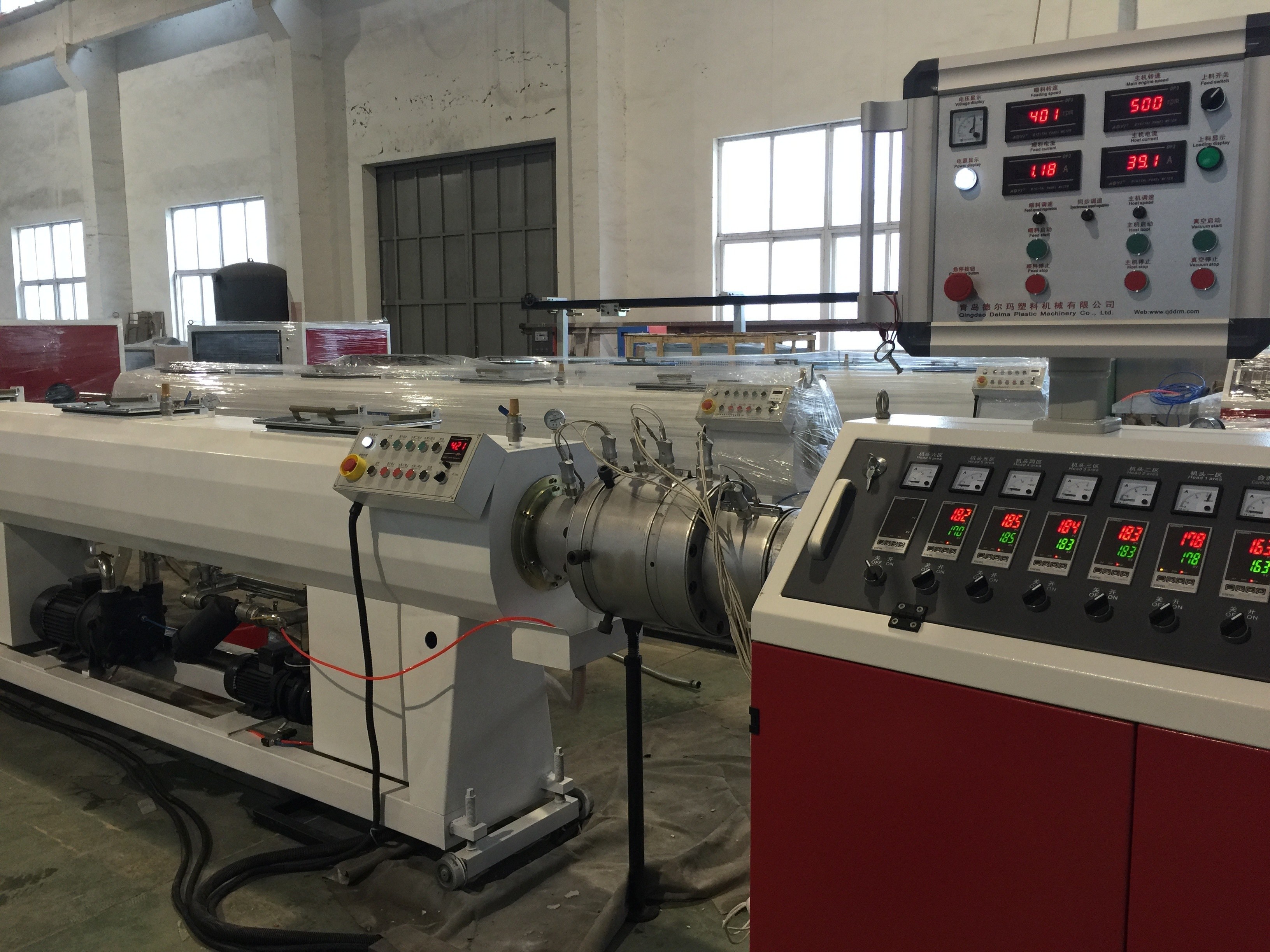

2.PVC pipe machine-Die Mould

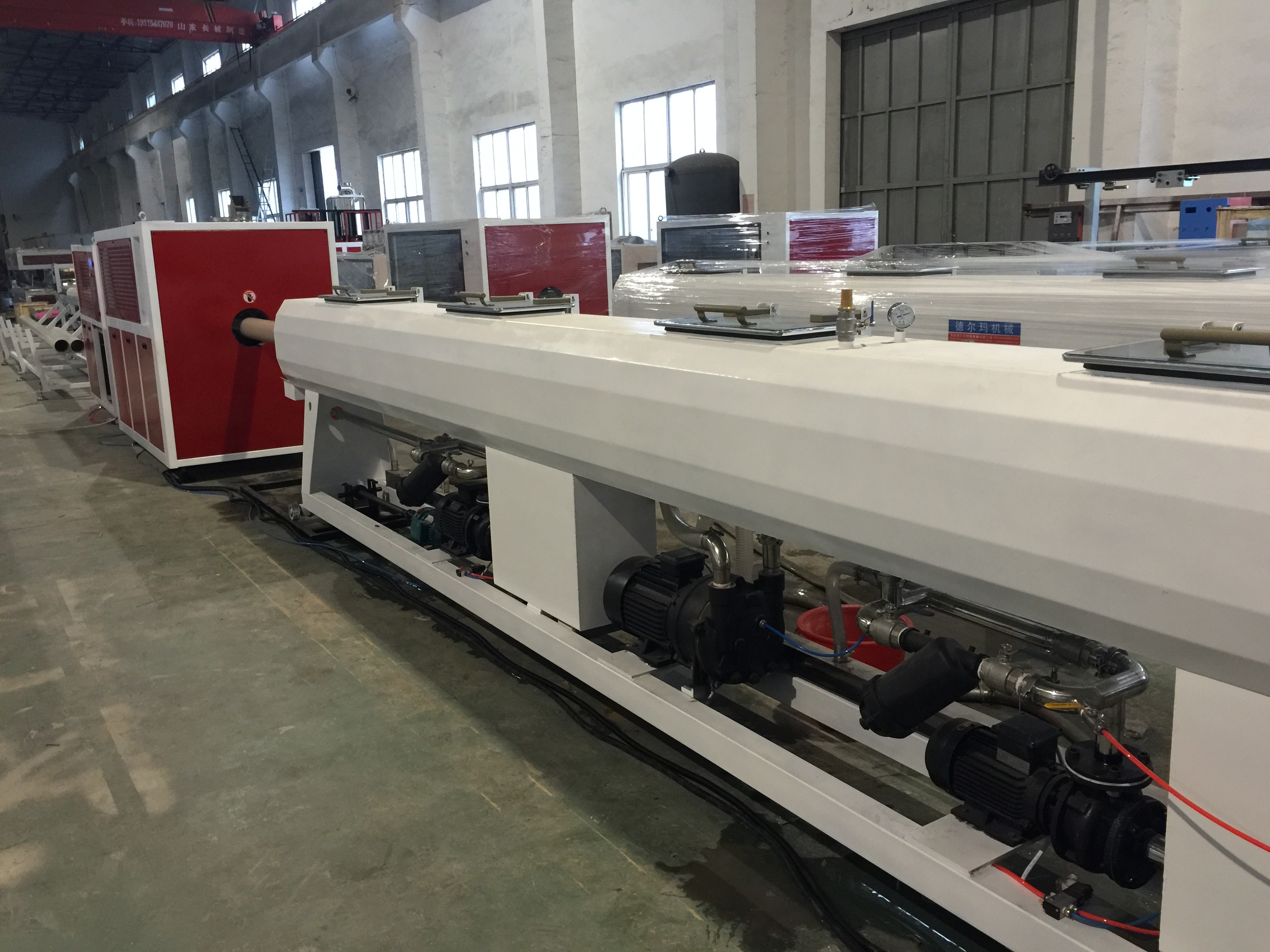

3. PVC pipe machine- Vacuum Calibration Device

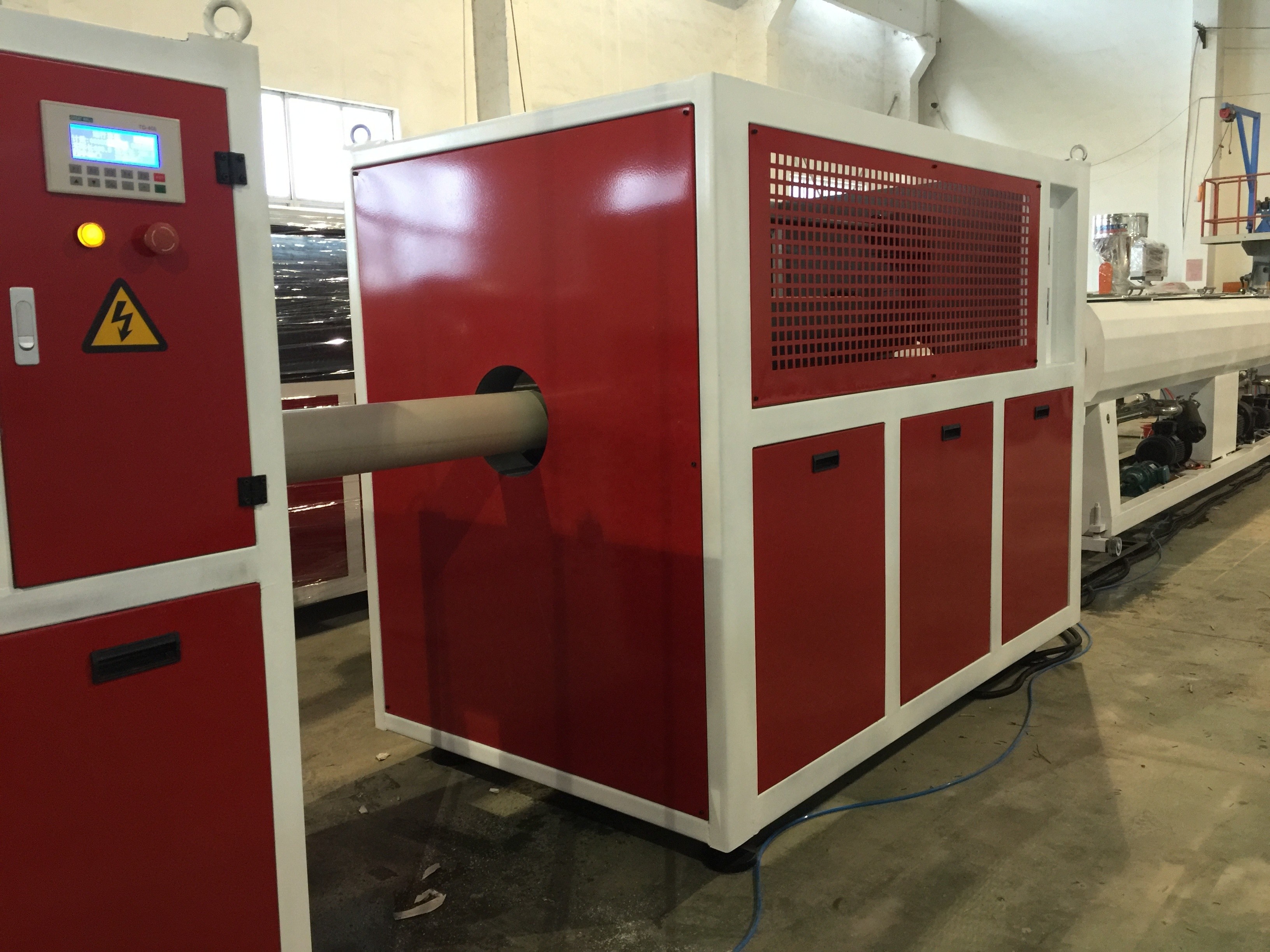

4. PVC pipe machine- Three Caterpillar Haul-off unit

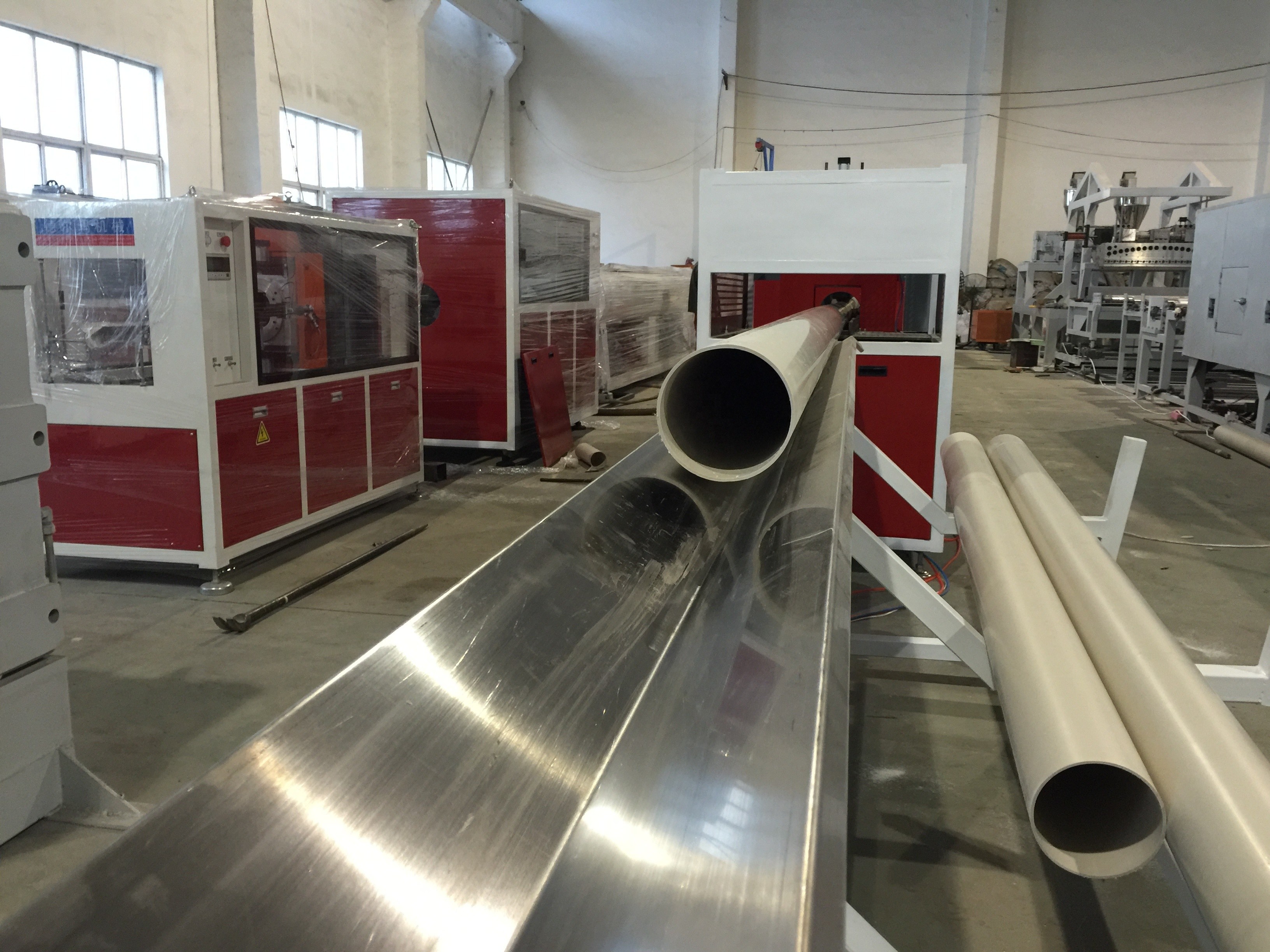

5. Planetary Cutting Machine + 6. Stacker
Auxiliary machine
1. PVC pipe machine- SWP-360 crusher machine
2. PVC pipe machine-Heating &Cooling Mixing unit(We recommend use SRH-300/600 Mixer)-Mix PVC pipe formula
3.500MILLING MACHINE-recycle pipes
4.AUTOMATIC PIPE BELLING MACHINE
Application
The pvc pipe machine produce PVC pipe is mostly used in construction industry water supply, drain,electrical cable coating and under ground sweage treatment and so on.
Welcome u visit us to check our PVC pipe machine quality any time, we have different pipe machine orders in our workshop!
Execellent Service-Turnkey Project
DEERMA is committed to providing full support for its local and international clients and dealers and will always provide a prompt response to customer enquiries.
A. Free training for maintenance personnel;
B. Installation service& commissioning by porfessional;
C.The establishment of user fles, a long-term follow-up service and regular return visits;
D. A 24-hour hot-line service ensures the timeliest solution to your faulty equipment.
E.Calling or Door to Door service
F.One year guarantee for whole machine
