| Place of Origin: | Shandong, China |
|---|---|
| Brand Name: | Deerma |
| Certification: | CE ISO9001 |
| Price: | $200,000.00/sets 1-3 sets |
| Packaging Details: | 1.Mold package: Wooden package. <br> <br>2.Outside package:Stretch film<br> <br>3.Loading Qty : 1x40HC for one production line |
| Supply Ability: | 3 Set/Sets per Quarter |
| Condition: | New | Plastic Processed: | PP |
|---|---|---|---|
| Application: | PP MELT BLOWN NON WOVEN | Screw Design: | Single-screw |
| Screw Material: | 38CrMoAIA | Screw Diameter (mm): | 65 Mm |
| Screw L/D Ratio: | 30 | Screw Speed (rpm): | 40 Rpm |
| Showroom Location: | None | Voltage: | 380V 50HZ 3Phase(Customized) |
| Dimension(L*W*H): | 10 X 4 X 3m | Power (kW): | 30 |
| Weight: | 3 | Warranty: | 1 YEAR |
| Key Selling Points: | High-accuracy | Applicable Industries: | Manufacturing Plant, Printing Shops, CIVIL USE OR MEDICAL USE |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Motor, Pump, PLC, Gearbox, Screw | Machinery Test Report: | Provided |

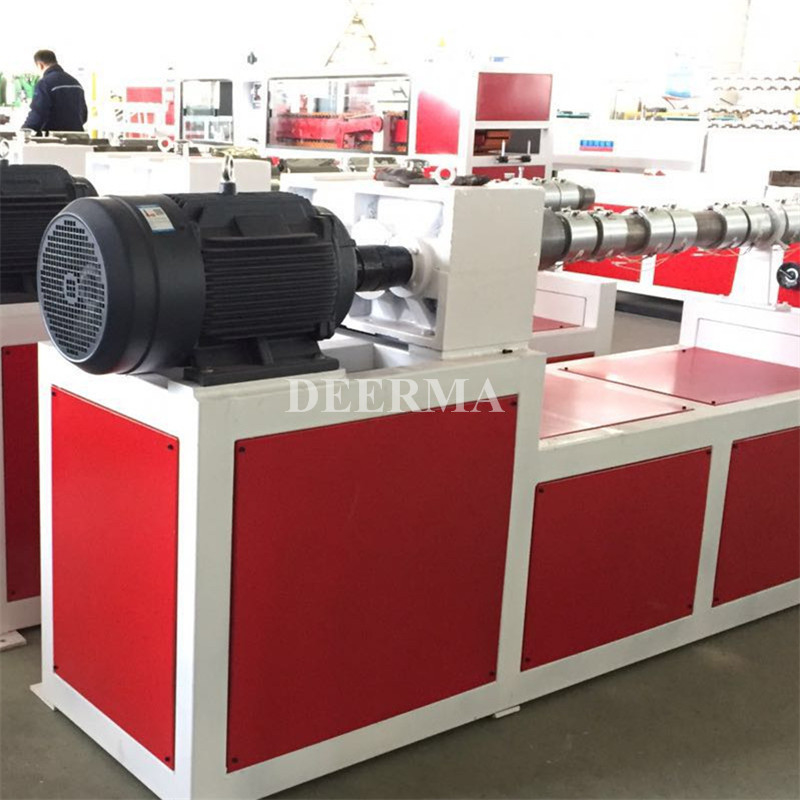

| Name: | PP Melt Blown Non Woven Machine | Extruder: | SJ65 Single Screw Extruder |
| 600mm Mould: | After Slitting Can Get 3 Rollers 175mm | Application Field: | Civil Use Or Medical Use |
| Motor: | 30kw | Motor Brand: | Siemens China |
| Raw Material: | PP + Electret Masterbatch | Inverter: | ABB Brand |
| Contactor: | Schneider Brand | After Warranty Service: | Video Technical Support, Online Support |
| Local Service Location: | None | Marketing Type: | Ordinary Product |
| Port: | Qingdao |

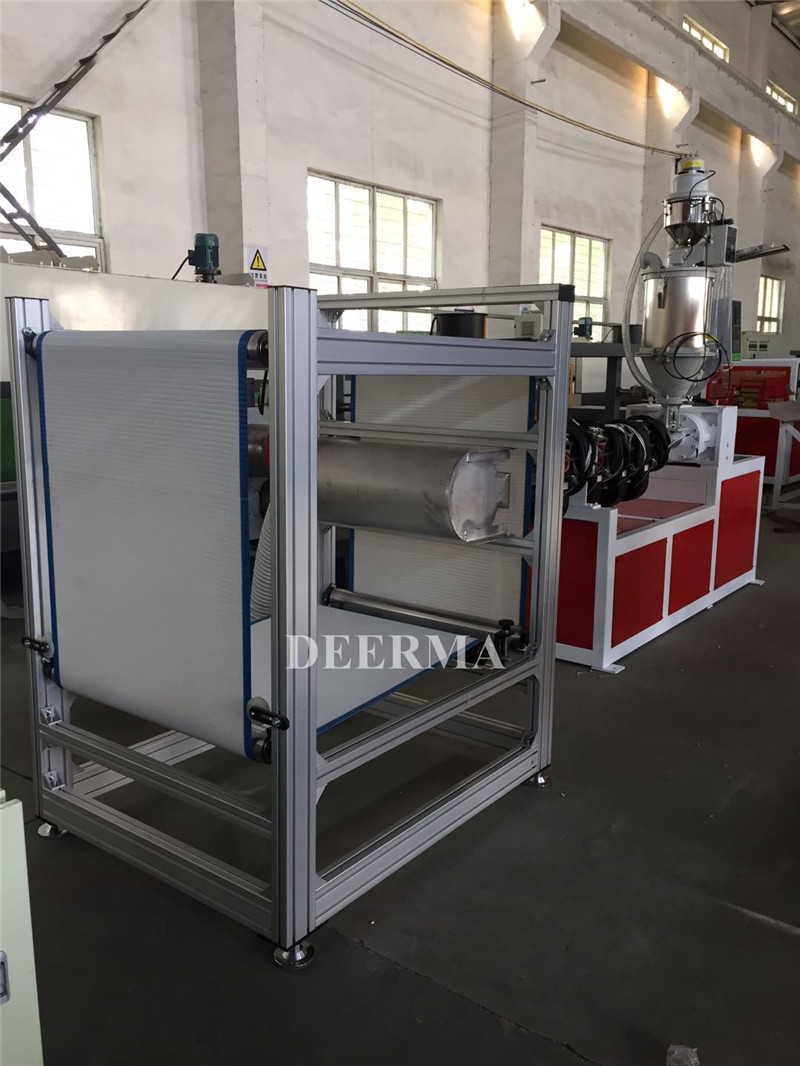

PP Melt Blown Nonwoven Machine
PP melt blown nonwoven fabric production line is an equipment that used to produce pp melt blown fabric which are widely used both in face mask and medical industry. And the principle of this equipment is as below:

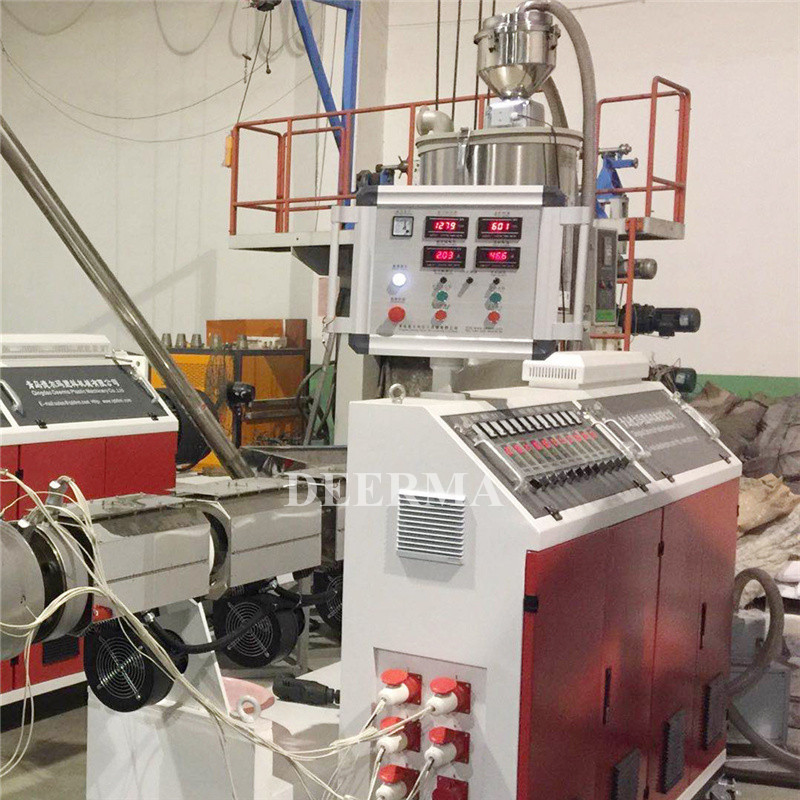

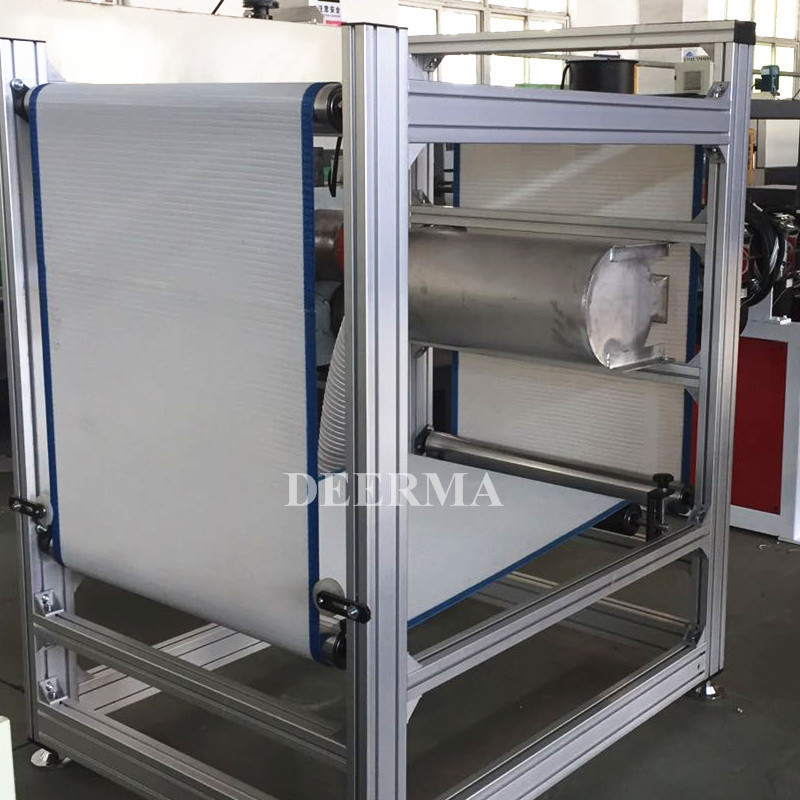

Auto Feeder feeds 100% new drawing class polypropylene into Extruder. Then pp materials are melt by heating through Extruder. Roots Blower blows the air into Air Heater and then the heated air will blow the liquid melted polypropylene materials through the Nozzle Heads (with hundreds of small holes in the mold), and finally threaded materials arrive at the Receiving car. Receiving car can be customized.
The micro-denier fiber (less than 0.1 denier per filament) is very fine, which only can be produced by melt blown process.It can not be used as nonwoven fibrous raw material alone but the appearance of nonwoven melt blown fabric solves this problem. Nonwoven melt blown fabric is anti-static, breathable, eco-friendly, soft, damp proof, recyclable, easy to shape, water and oil repellence, and antimicrobico.
